Description
Brand - NADELLA
Item Number - NTA40-18.5-1200 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 475 mm
Length (L) - 1200 mm
Extension (E) - 800 mm
Load Capacity for Pair of Rails (Cy) - 1500 N
Load Capacity for Pair of Rails (Cz) - 750 N
Net Weight - 5.1 kg
Description of Prefix:
NTA - Telescopic rails partial extension

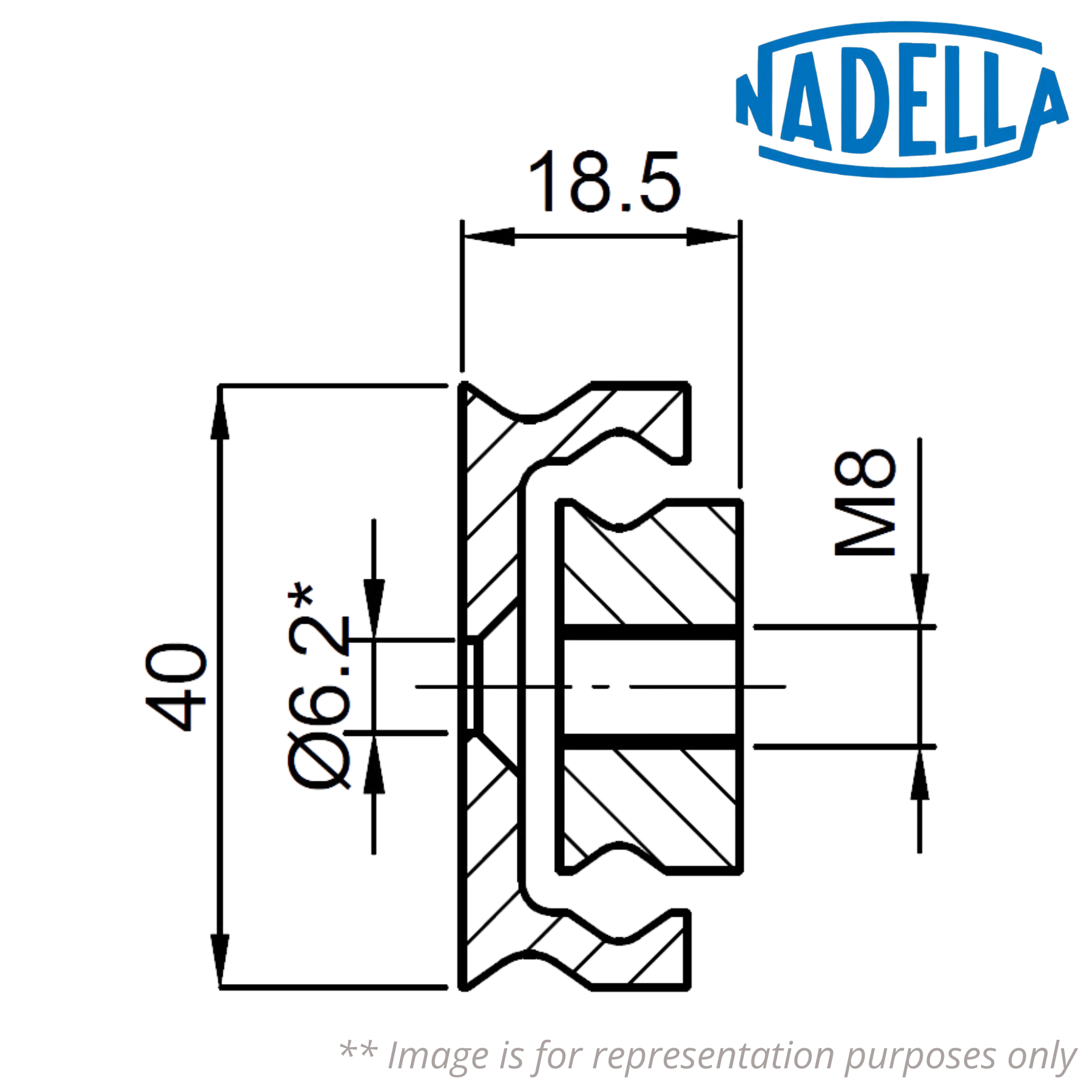

♦♦ Images are for representation purposes only
Item Number - NTA40-18.5-1200 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 475 mm
Length (L) - 1200 mm
Extension (E) - 800 mm
Load Capacity for Pair of Rails (Cy) - 1500 N
Load Capacity for Pair of Rails (Cz) - 750 N
Net Weight - 5.1 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
