Description
Brand - NADELLA
Item Number - NTA28-13H-610 NADELLA

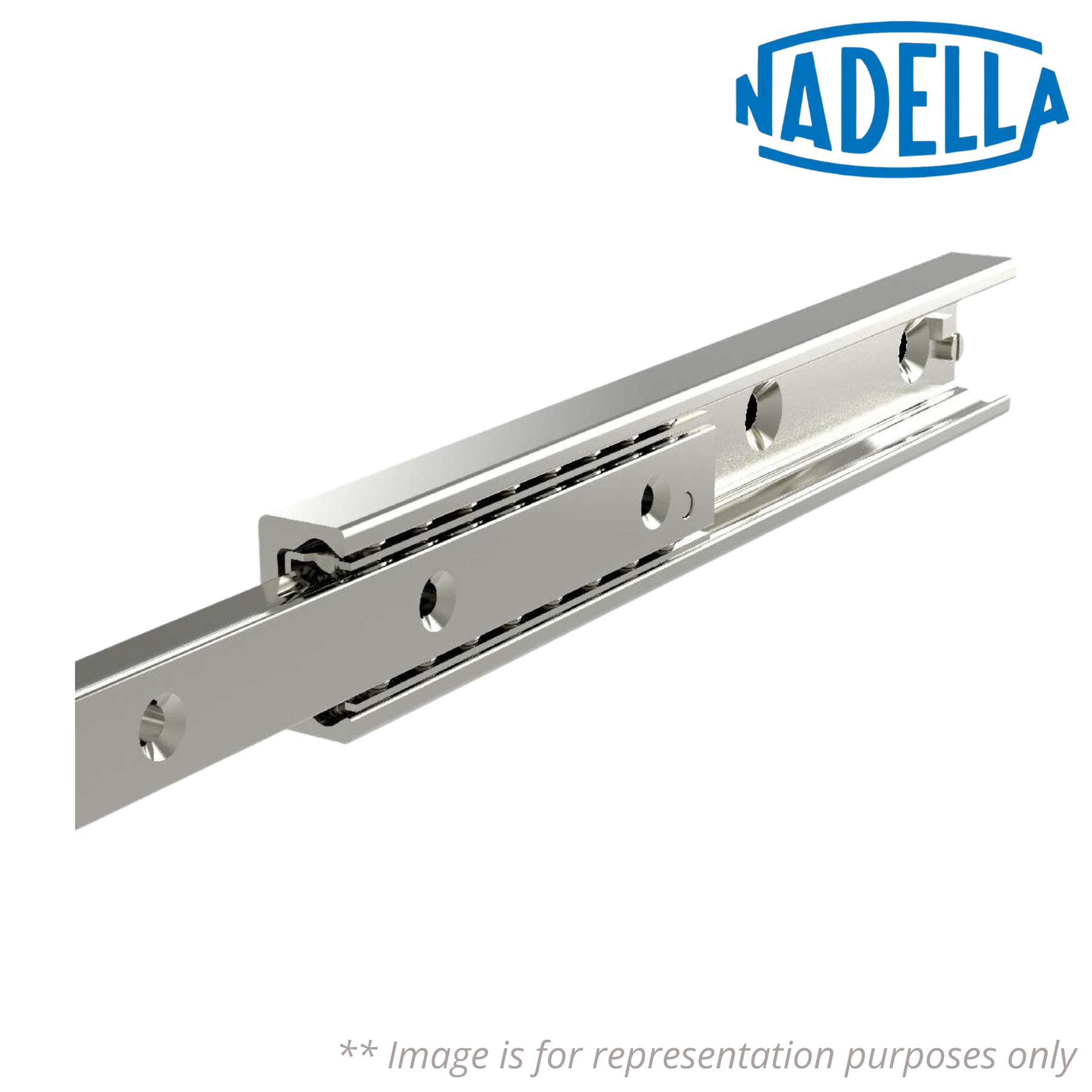

Category - Hardened Telescopic Rails Partial Extension

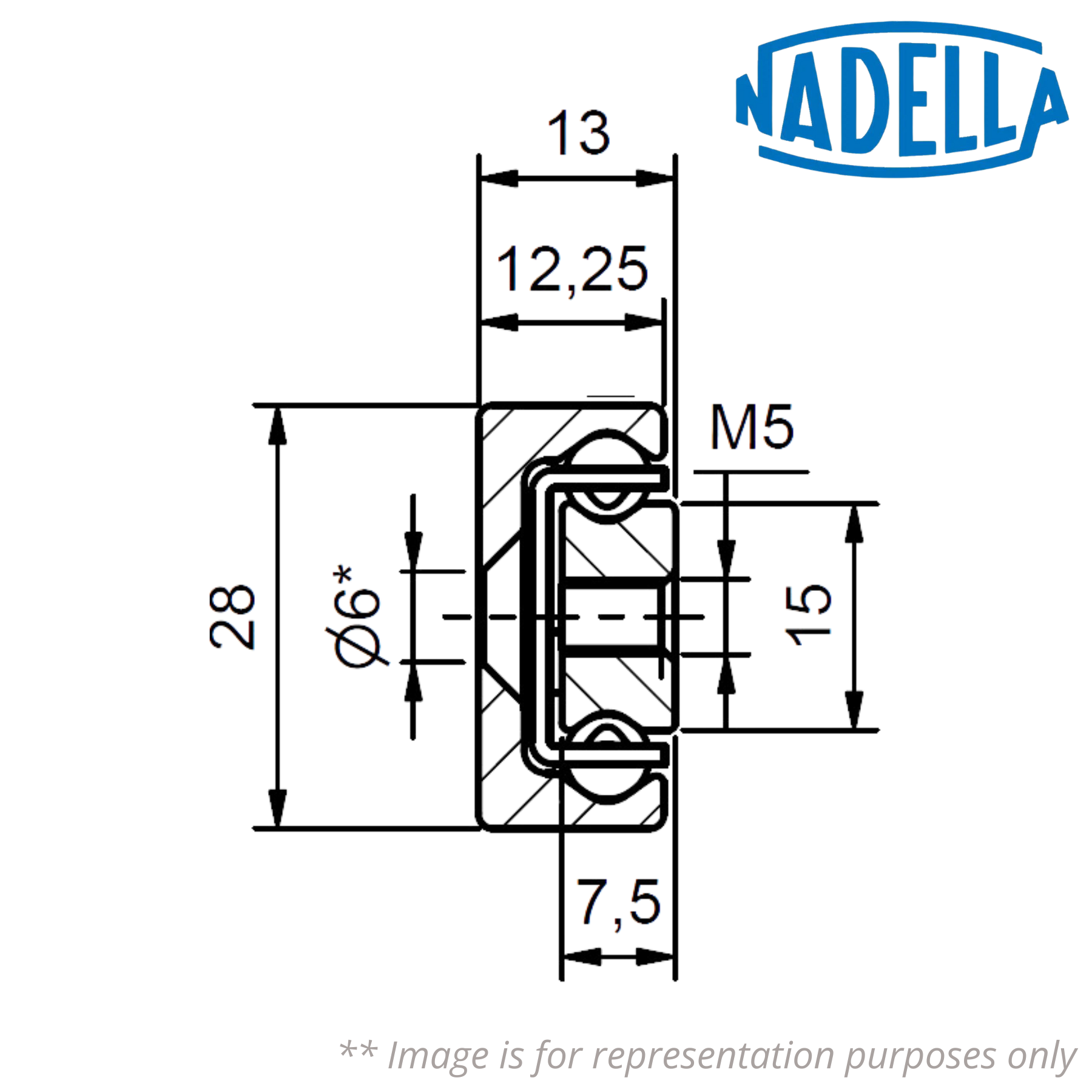

Principal Dimensions & Load Ratings (Metric):

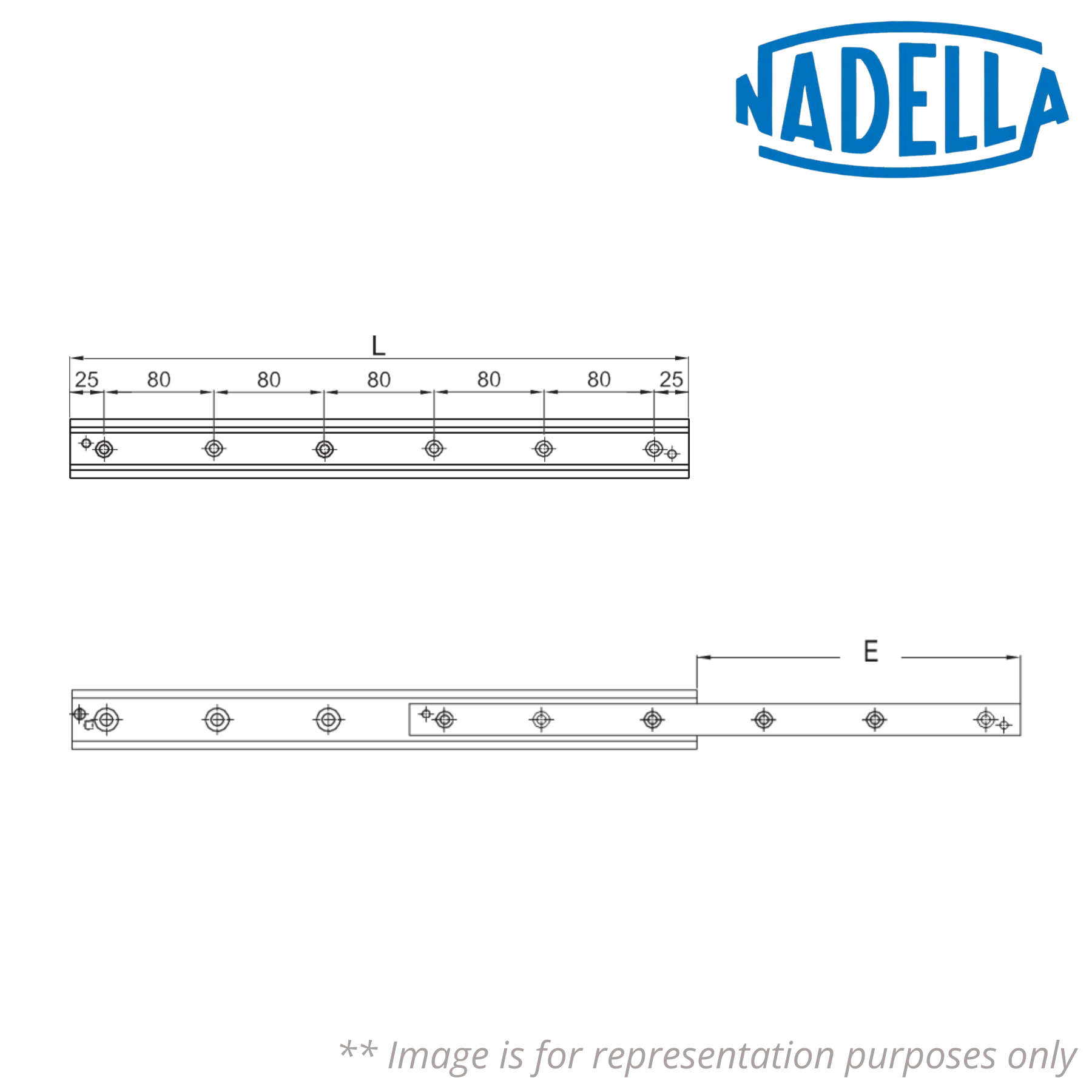

Length (L) - 610 mm
Extension - 323 mm
Load Capacity for Pair of Rails (Cy) - 8016 N
Load Capacity for Pair of Rails (Cz) - 5640 N
Torque Capacity for Single Rail (Mx) - 85 Nm
Torque Capacities for Pair of Rails (My) - 1087 Nm
Torque Capacities for Pair of Rails (Mz) - 1500 Nm
Dynamic Load for Lifetime calculation (Cdyn) - 13935 N
Weight - 1.31 kg
Description of Prefix:
NTA-H - Partial EXTENSION telescopic rails NTA-H, with a stroke equal to 50%-70% of the installation length
Other salient points to be noted:
• Double stroke (option VR): In order to obtain the double stroke and allow the slider to extend in both directions, please remove the screws at the edge of the rail or order with VR suffix
♦♦ Images are for representation purposes only
