Description
Brand - NADELLA
Item Number - NTA28-13H-530 NADELLA
Category - Hardened Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 530 mm
Extension - 273 mm
Load Capacity for Pair of Rails (Cy) - 7164 N
Load Capacity for Pair of Rails (Cz) - 5047 N
Torque Capacity for Single Rail (Mx) - 76 Nm
Torque Capacities for Pair of Rails (My) - 874 Nm
Torque Capacities for Pair of Rails (Mz) - 1214 Nm
Dynamic Load for Lifetime calculation (Cdyn) - 13051 N
Weight - 1.14 kg
Description of Prefix:
NTA-H - Partial EXTENSION telescopic rails NTA-H, with a stroke equal to 50%-70% of the installation length
Other salient points to be noted:
• Double stroke (option VR): In order to obtain the double stroke and allow the slider to extend in both directions, please remove the screws at the edge of the rail or order with VR suffix

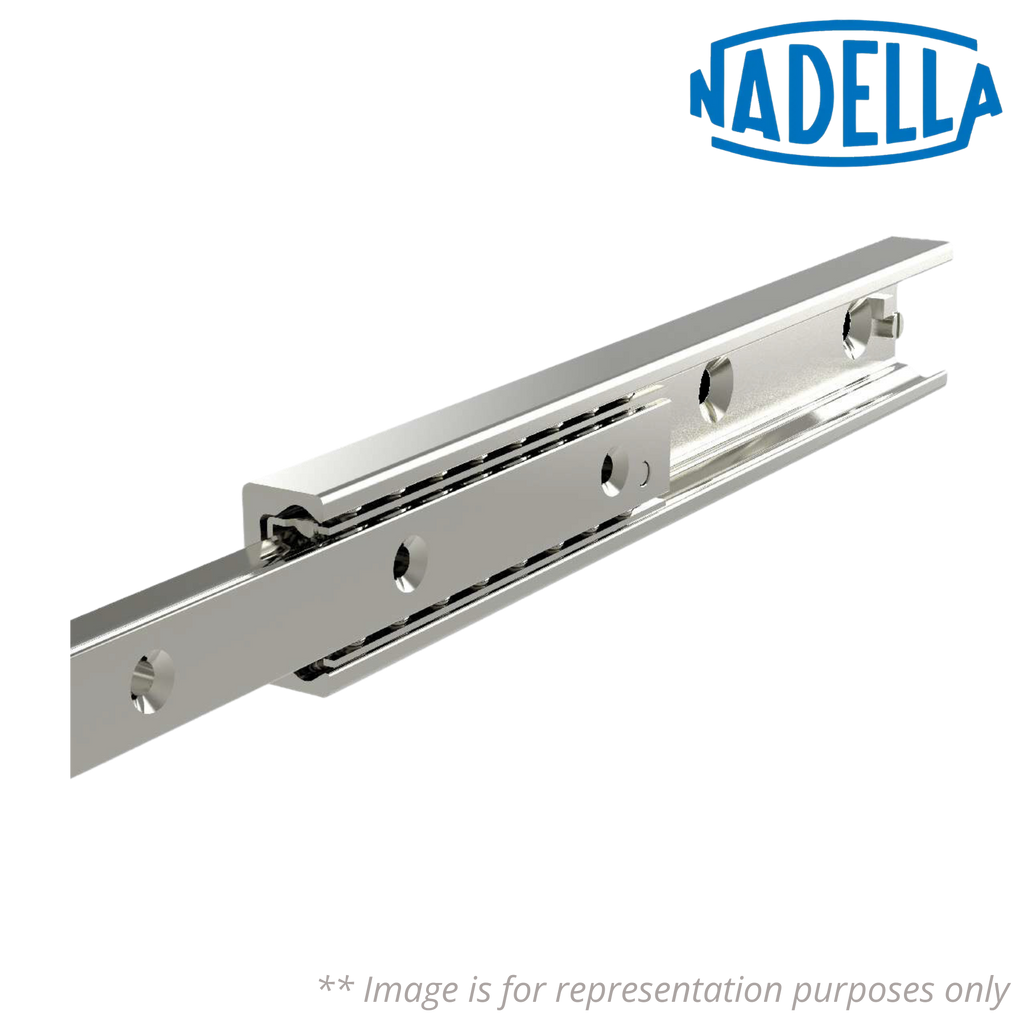

♦♦ Images are for representation purposes only
Item Number - NTA28-13H-530 NADELLA
Category - Hardened Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Length (L) - 530 mm
Extension - 273 mm
Load Capacity for Pair of Rails (Cy) - 7164 N
Load Capacity for Pair of Rails (Cz) - 5047 N
Torque Capacity for Single Rail (Mx) - 76 Nm
Torque Capacities for Pair of Rails (My) - 874 Nm
Torque Capacities for Pair of Rails (Mz) - 1214 Nm
Dynamic Load for Lifetime calculation (Cdyn) - 13051 N
Weight - 1.14 kg
Description of Prefix:
NTA-H - Partial EXTENSION telescopic rails NTA-H, with a stroke equal to 50%-70% of the installation length
Other salient points to be noted:
• Double stroke (option VR): In order to obtain the double stroke and allow the slider to extend in both directions, please remove the screws at the edge of the rail or order with VR suffix
♦♦ Images are for representation purposes only
