Description
Brand - NADELLA
Item Number - NTA150-35-1100 NADELLA
Category - Telescopic Rails Partial Extension

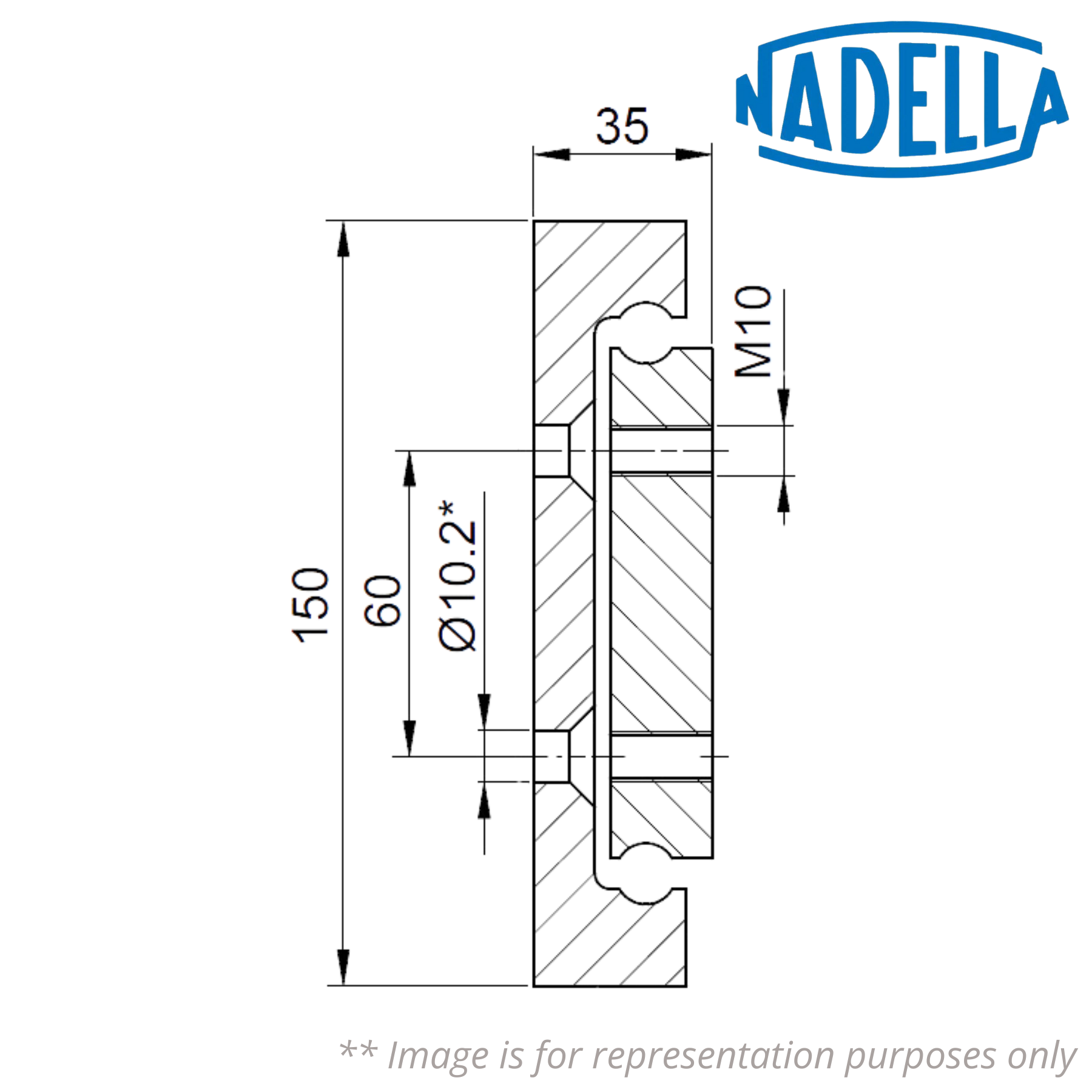

Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 150 mm
Length (L) - 1100 mm
Extension (E) - 660 mm
Load Capacity for Pair of Rails (Cy) - 14100 N
Load Capacity for Pair of Rails (Cz) - 7050 N
Net Weight - 38 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
Item Number - NTA150-35-1100 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (c) - 150 mm
Length (L) - 1100 mm
Extension (E) - 660 mm
Load Capacity for Pair of Rails (Cy) - 14100 N
Load Capacity for Pair of Rails (Cz) - 7050 N
Net Weight - 38 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
