Description
Brand - NADELLA
Item Number - NTA120-31-700 NADELLA
Category - Telescopic Rails Partial Extension

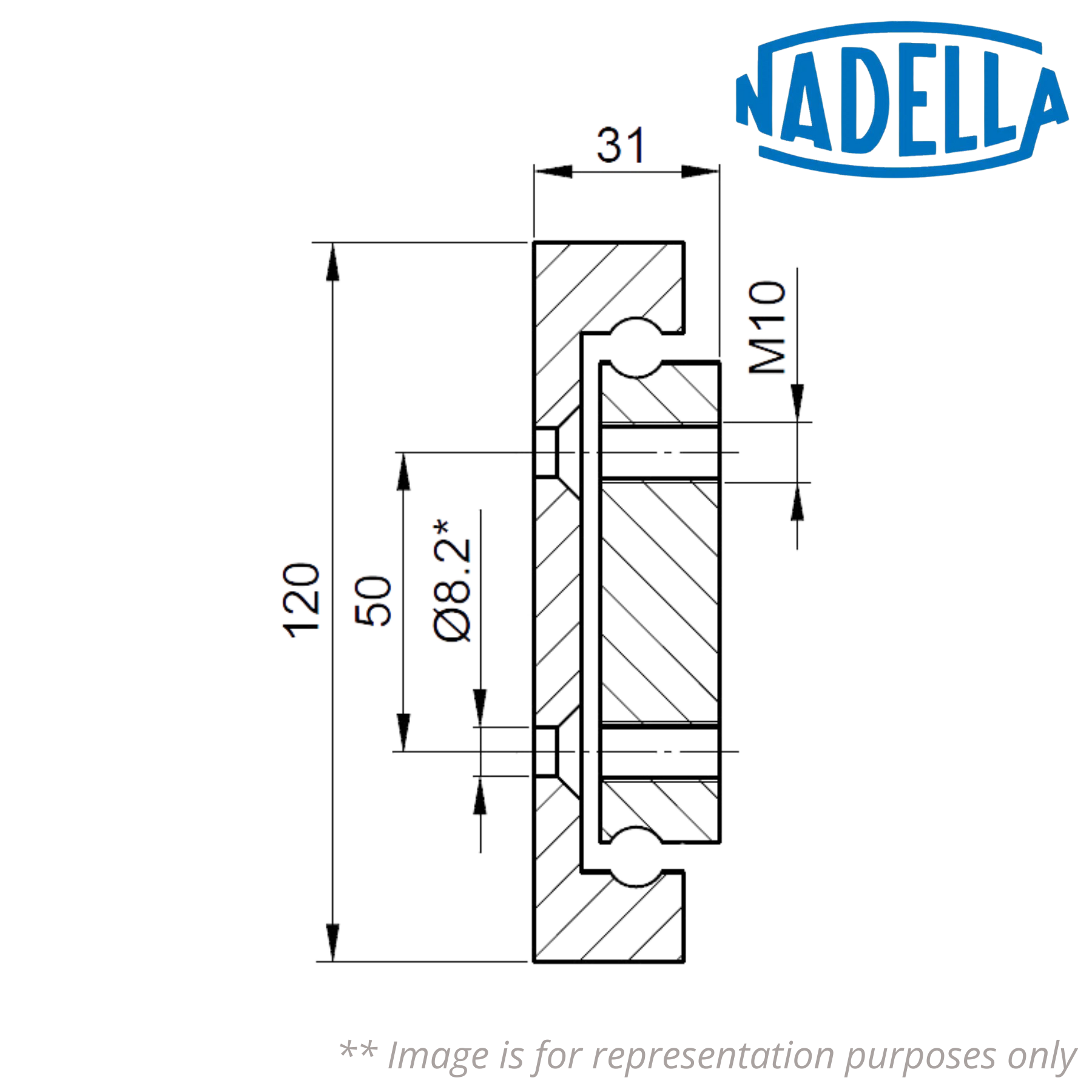

Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 100 mm
Length (L) - 700 mm
Extension (E) - 420 mm
Load Capacity for Pair of Rails (Cy) - 11500 N
Load Capacity for Pair of Rails (Cz) - 5750 N
Net Weight - 16.6 kg
Description of Prefix:
NTA - Telescopic rails partial extension

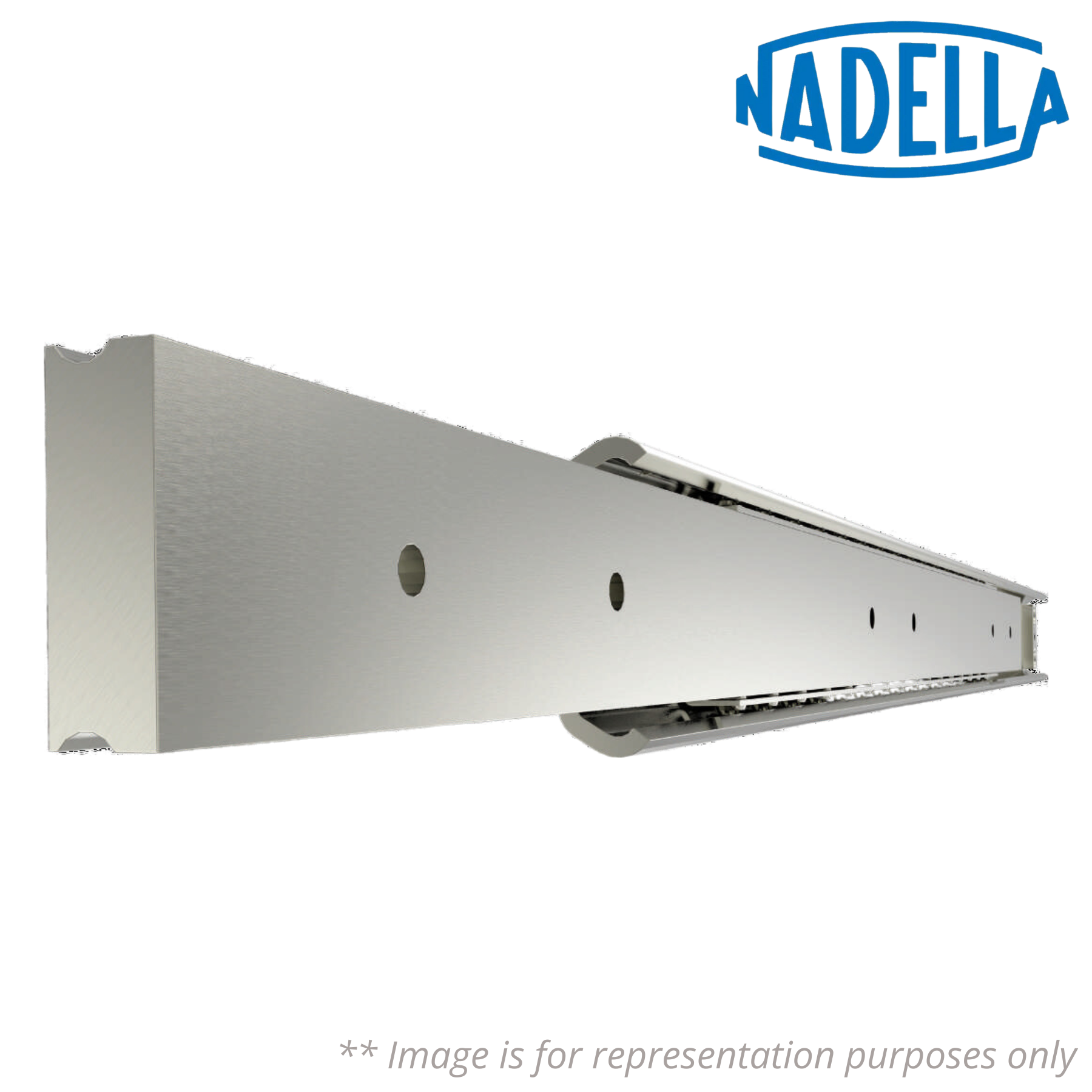

♦♦ Images are for representation purposes only
Item Number - NTA120-31-700 NADELLA
Category - Telescopic Rails Partial Extension
Principal Dimensions & Load Ratings (Metric):
Hole Separation (B) - 100 mm
Length (L) - 700 mm
Extension (E) - 420 mm
Load Capacity for Pair of Rails (Cy) - 11500 N
Load Capacity for Pair of Rails (Cz) - 5750 N
Net Weight - 16.6 kg
Description of Prefix:
NTA - Telescopic rails partial extension
♦♦ Images are for representation purposes only
