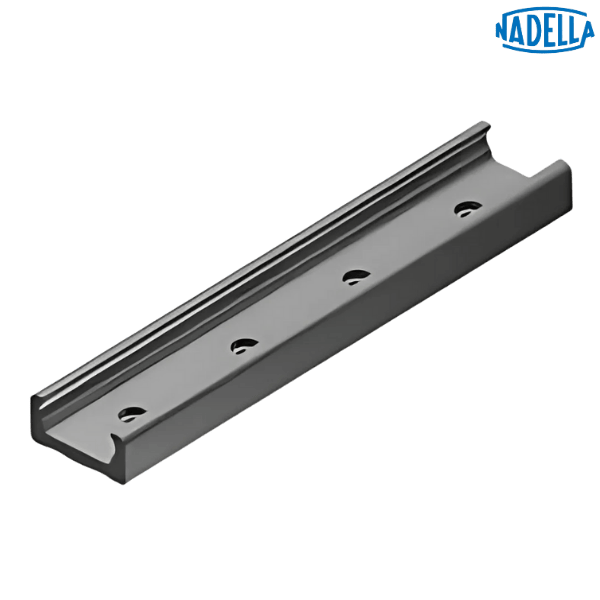

Description
Brand - NADELLA
Item Number - NT 28 NADELLA
Category - Steel Guide Rails Hardened with Internal Raceways
Principal Dimensions & Load Ratings (Metric):

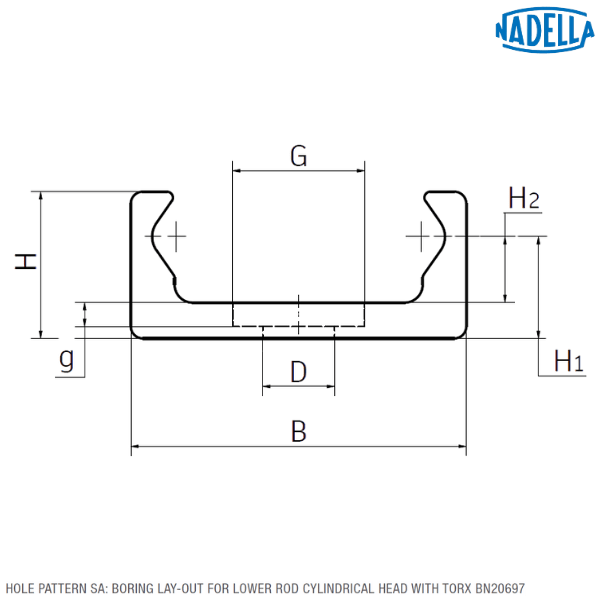

Dimension (B) - 28 mm
Dimension (H) - 12.25 mm
Dimension (H1) - 8.5 mm
Dimension (H2) - 5.5 mm
Dimension (D) - 6 mm
Dimension (G) - 11 mm
Dimension (g) - 1.5 mm

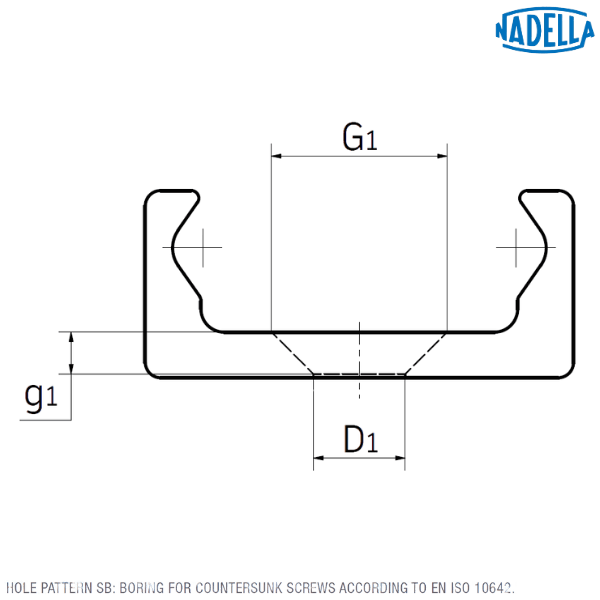

Dimension (D1) - 6 mm
Dimension (G1) - 11.5 mm
Dimension (g1) - 2.75 mm

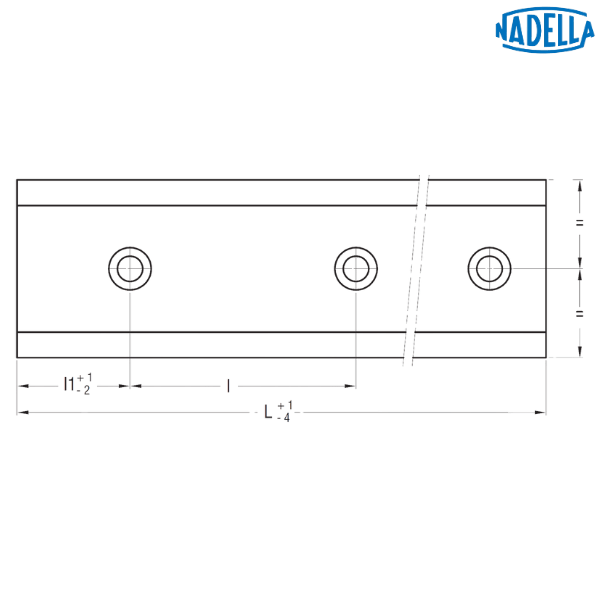

Dimension (I) - 80 mm
Dimension (I1) - 40 mm
Maximum Dimension (L*) - 4000 mm
Moment of Inertia (Jx) - 0.17 cm4
Moment of Inertia (Jy) - 1.45 cm4
Weight - 1.18 kg/m
Description of Prefix:
NT - Rails totally in steel with internal hardened raceways with V-profile for C-Line system
Other salient points to be noted:
* Longer rails will be fitted with finish-machined joints
Rail Design Standard:
• Drawn, induction hardened raceways
• Surface zinc-plated (MT ... GZ)
Surface Options:
• Chemically nickel-plated (NW)
• Uncoated, blasted
Fixing Holes:
• For Hole pattern according to catalogue, Suffix will be SA or SB, e.g. NT 28 MT 2600 SAGZ, NT 28 MT 2600 SBGZ
• For Hole pattern according to drawing, Suffix will be NZ, e.g. NT 28 MT 2600 NZGZ
• For Without holes, Suffix will be NF, e.g. NT 28 MT 2600 NFGZ
Standard Designation Examples:
• NT 28 MT 760 GZ
• NT 28 MT 1050 GZ
• NT 28 MT 2600 GZ
• NT 28 MT 3450 GZ
♦ ♦ Images are for representation purposes only
