Description

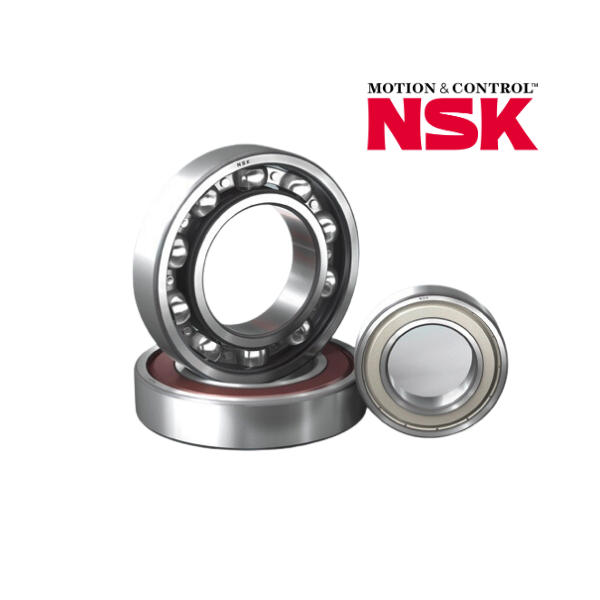

Brand - NSK
Item Number - 685ZZMC3E PS2S NSK
Also known as - 685-2Z/C3QE6 685-2Z-C3 685ZZ C3 685ZZ MC3E 685ZZMC3E
Category - Deep Groove Ball Bearings Single Row
Inner (d) MM - 5
Outer (D) MM - 11
Width (B) MM - 3
Inner (d) Inch - 0.1969
Outer (D) Inch - 0.4331
Width (B) Inch - 0.1181
Weight (kg) - 0.0014
Bore - C - Cylindrical Bore
Seal - ZZ/2Z - Steel Seal on Two Sides
Cage Type - S - Steel or Standard Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Lubrication - Low Temperature Grease
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Special Treatment - No Special Treatment
