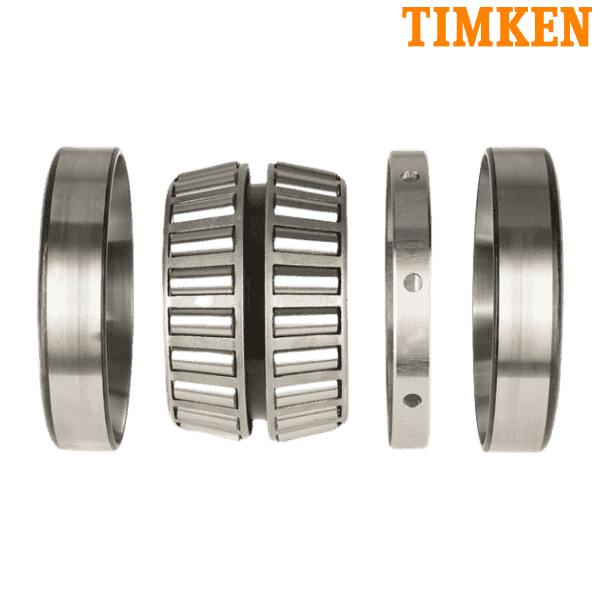

NP726553/NP137813 TIMKEN

Brand - TIMKEN
Item Number - NP726553/NP137813 TIMKEN
Also Known As - NP726553 - NP137813
Category - Double Row Tapered Roller Bearing (TDI Type)
Bore Diameter (d) mm - 600
Bore Diameter (d) inch - 23.622
Outer Diameter (D) mm - 1170
Outer Diameter (D) inch - 46.063
Bearing Width across Cups (T) mm - 510
Bearing Width across Cups (T) inch - 20.0787
Double Cone Width (B) mm - 510
Double Cone Width (B) inch - 20.0787
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) N - 20500000
Dynamic Radial Rating (Two-Row, 1 million revolutions) (C1) lbf - 4610000
Factor (e) - 0.5
Factor (Y1) - 1.4
Factor (Y2) - 2
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) N - 3050000
Dynamic Radial Rating (One-Row, 90 million revolutions) (C90) lbf - 687000
Dynamic Thrust Rating (90 million revolutions) (Ca90) N - 2590000
Dynamic Thrust Rating (90 million revolutions) (Ca90) lbf - 581000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 5320000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 1200000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.18
Maximum Shaft Fillet Radius (R) mm - 10
Maximum Shaft Fillet Radius (R) inch - 0.39
Cone Frontface Backing Diameter (da) mm - 708
Cone Frontface Backing Diameter (da) inch - 27.87
Maximum Housing Fillet Radius (r) mm - 10
Maximum Housing Fillet Radius (r) inch - 0.39
Cup Backface Backing Diameter (Db) mm - 1040
Cup Backface Backing Diameter (Db) inch - 40.94
Geometry Factor (G1) - 15142.1
Geometry Factor (G2) - 383.3
Geometry Factor (Cg) - 0.3624
Weight (kg) - 2575.44
Weight (lbs) - 5674.87
Inner Part Number - NP726553
Outer Part Number - NP137813
TDI - Double Inner Ring
