Description
Brand - Timken
Part Number with Assembly Code - NP340527-902A1
Manufacturer's UPC - 087796315914

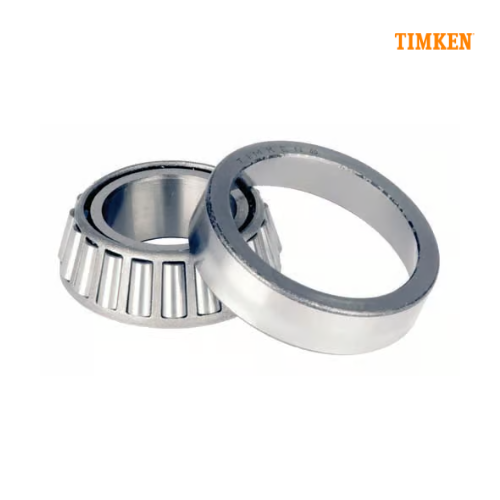

Category - Imperial Single Row Tapered Roller Bearing Assembly

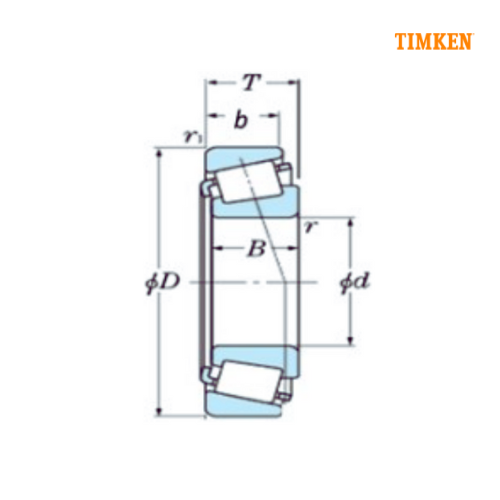

d = Inner Diameter (inch) - 12.5
D = Outer Diameter (inch) - 25
T = Width (inch) - 6.5
B (inch) = 5.75
b (inch) = 4.5
r (inch) = 0.75
r1 (inch) = 0.5
d = Inner Diameter (mm) - 317.5
D = Outer Diameter (mm) - 635
T = Width (mm) - 165.1
B (mm) = 146.015
b (mm) = 114.3
r (mm) = 19.0
r1 (mm) = 12.7
Weight (lbs) - 476.198
Weight (kg) - 215.996
Static Load Rating - 927000 lb
Dynamic Load Rating - 710000 lb
Precision - Standard Precision
