Description
Brand - TIMKEN
Item Number - NP194866/NP089744 (K167026) TIMKEN
Also Known As - NP194866 - NP089744 (K167026)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 710
Bore Diameter (d) inch - 27.9528
Outer Diameter (D) mm - 950
Outer Diameter (D) inch - 37.4016
Width (T) mm - 226
Width (T) inch - 8.8976
Width (B) mm - 212
Width (B) inch - 8.3464
Dynamic Radial Rating (C1) N - 7050000
Dynamic Radial Rating (C1) lbf - 1580000
Factor (e) - 0.46
Factor (Y1) - 1.47
Factor (Y2) - 2.19
Dynamic Radial Rating (90 million revolutions) (C90) N - 1050000
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 236000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 824000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 185000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 1830000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 411000
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.27
Maximum Shaft Fillet Radius (R) mm - 3
Maximum Shaft Fillet Radius (R) inch - 0.12
Backing Shoulder Diameter (db) mm - 744
Backing Shoulder Diameter (db) inch - 29.29
Maximum Housing Fillet Radius (r) mm - 6
Maximum Housing Fillet Radius (r) inch - 0.24
Cup Frontface Backing Diameter (Da) mm - 897
Cup Frontface Backing Diameter (Da) inch - 35.31
Weight (kg) - 445.68
Weight (lbs) - 982.52
Outer Spacer - K167026
Inner Part Number - NP194866
Outer Part Number - NP089744
2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

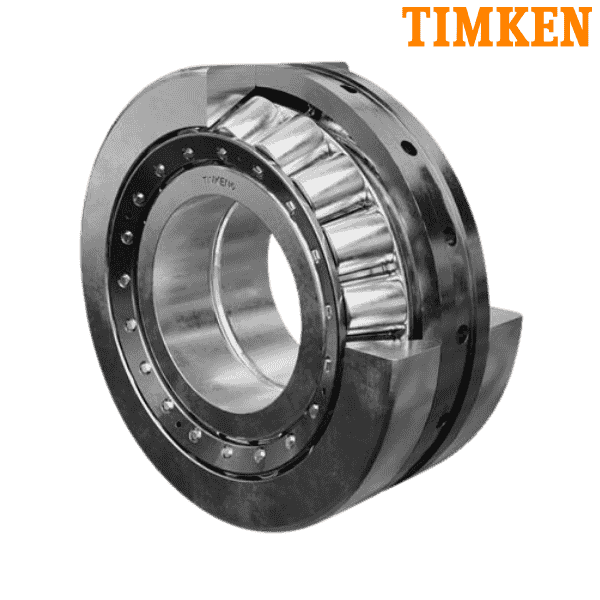

** Images are for representation purposes only
