Description
Brand - FAG
Item Number - NNU48/800-S-K-M-SP-H20 FAG

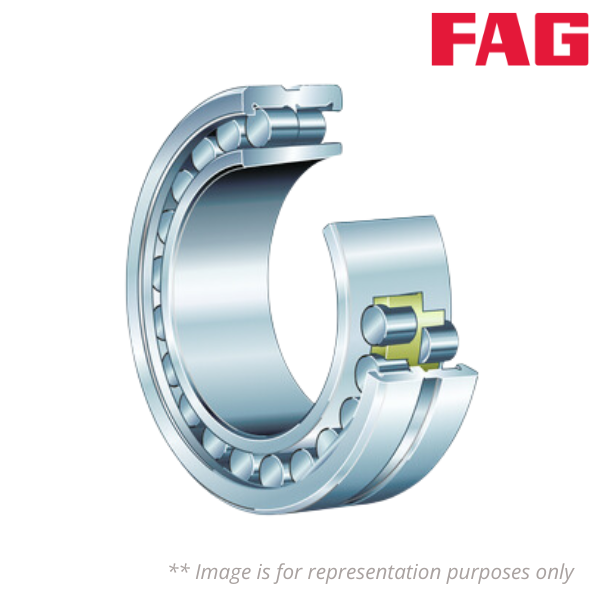

Category - Cylindrical Roller Bearing Double Row
Also known as - NNU48/800-S-K-M-SP
Inner (d) MM - 800
Outer (D) MM - 980
Width (B) MM - 180
Weight (kg) - 286
Bore - K - 1:12 Tapered Bore (Standard for Most Types)
Seal - No Seal
Cage Type - M - Brass Cage
External Modification - No External Modification
Radial Internal Play - Cn Normal Internal Play
Precision - SP - Precision Higher than P4S
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
