Description
Brand - ZEN
Item Number - NNF 5038 PP 2NR ZEN

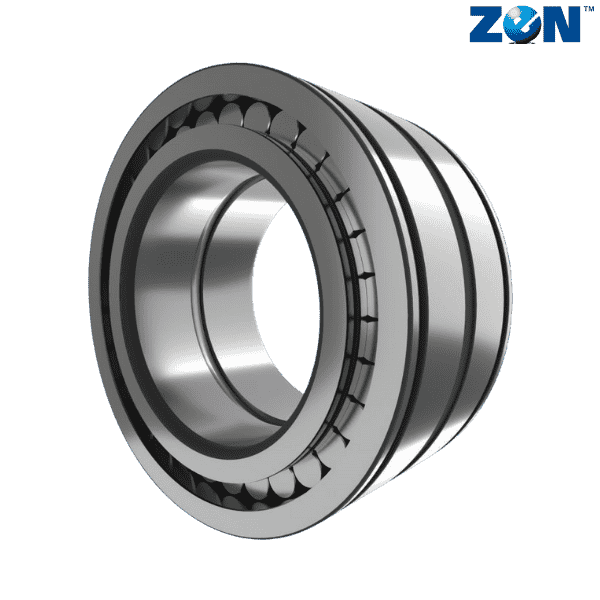

Category - Cylindrical Roller Bearings

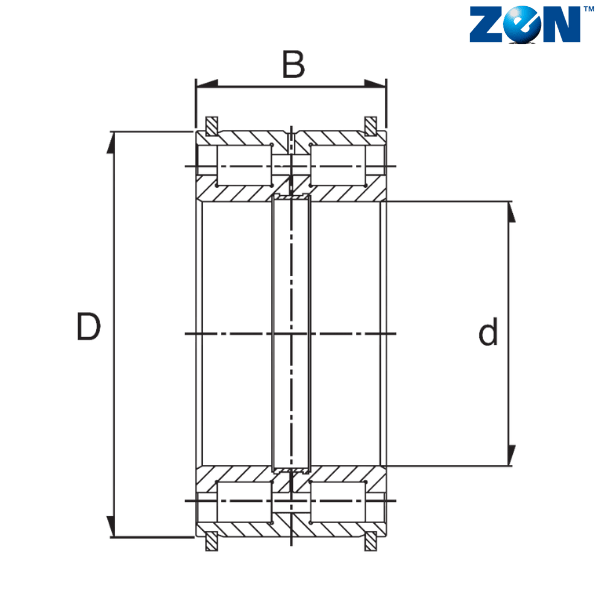

Inner Diameter (d) mm - 190
Outer Diameter (D) mm - 290
Width (B) mm - 136
Dynamic Load Rating (C) N - 1120
Static Load Rating (C) N - 2230
Limiting Speed (rpm) - 530
Weight (kg) - 31.5
Alternative Designation - SL04 5038 PP 2NR
** Images are for representation purposes only
