Description
Brand - ZEN
Item Number - NNF 5036 PP ZEN
Category - Cylindrical Roller Bearings

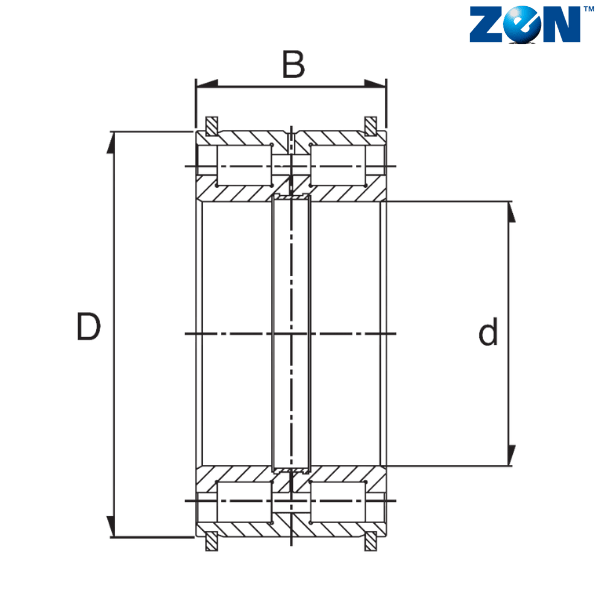

Inner Diameter (d) mm - 180
Outer Diameter (D) mm - 280
Width (B) mm - 136
Dynamic Load Rating (C) N - 1090
Static Load Rating (C) N - 2140
Limiting Speed (rpm) - 560
Weight (kg) - 30.1
Alternative Designation - SL04 5036 PP

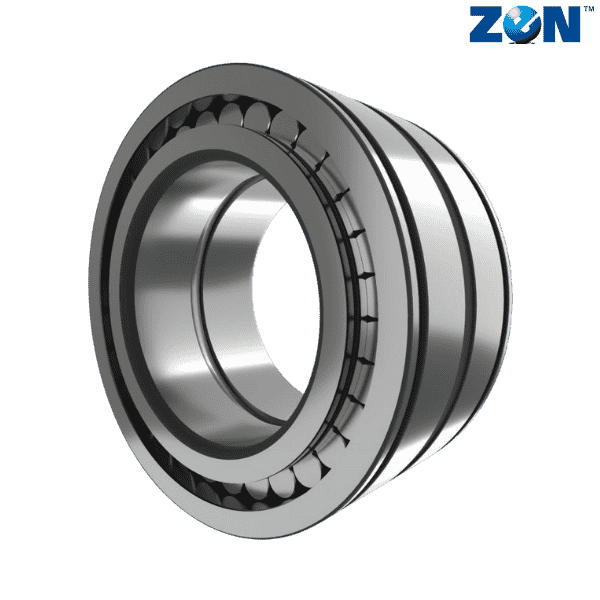

** Images are for representation purposes only
