Description
Brand - ZEN
Item Number - NNF 5030 PP ZEN
Category - Cylindrical Roller Bearings

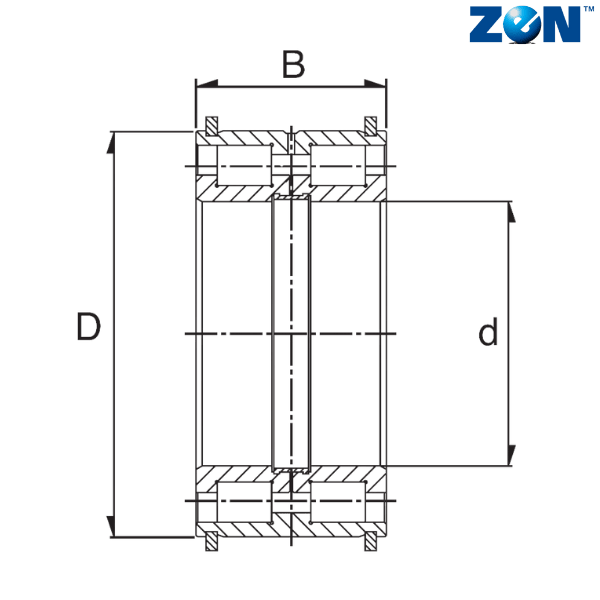

Inner Diameter (d) mm - 155
Outer Diameter (D) mm - 225
Width (B) mm - 100
Dynamic Load Rating (C) N - 690
Static Load Rating (C) N - 1290
Limiting Speed (rpm) - 670
Weight (kg) - 13.5
Alternative Designation - SL04 5030 PP

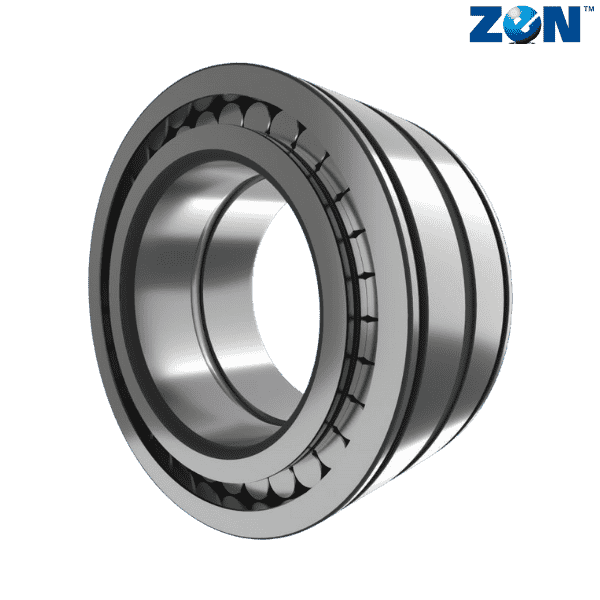

** Images are for representation purposes only
