Description
Brand - ZEN
Item Number - NNF 5024 PP ZEN
Category - Cylindrical Roller Bearings

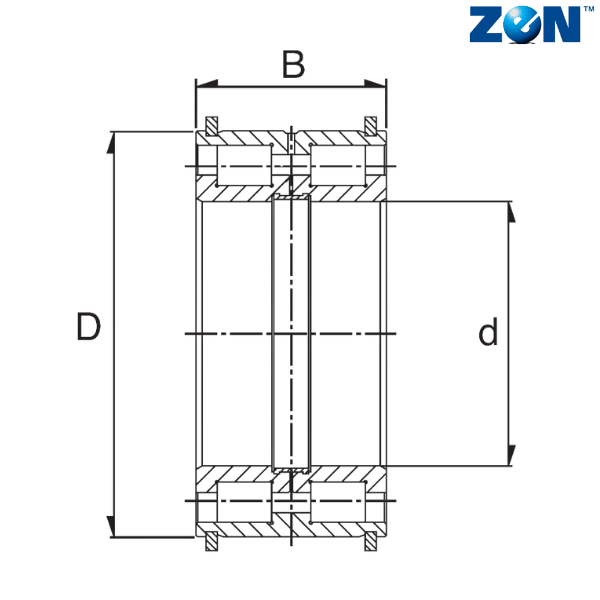

Inner Diameter (d) mm - 120
Outer Diameter (D) mm - 180
Width (B) mm - 80
Dynamic Load Rating (C) N - 400
Static Load Rating (C) N - 750
Limiting Speed (rpm) - 830
Weight (kg) - 7.04
Alternative Designation - SL04 5024 PP

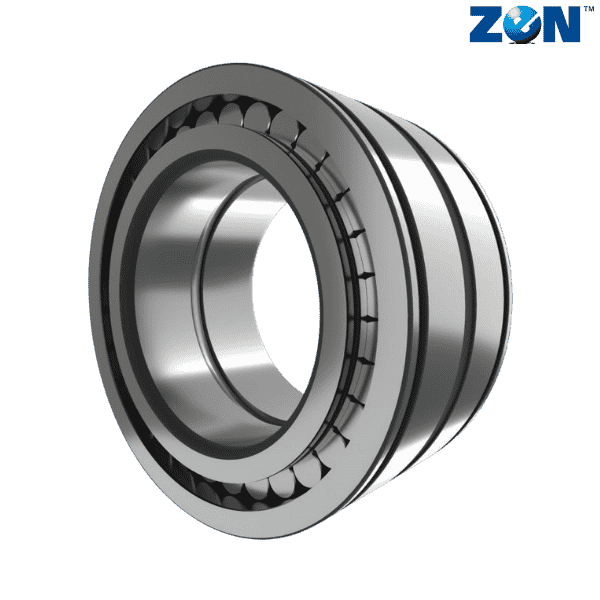

** Images are for representation purposes only
