Description
Brand - ZEN
Item Number - NNF 5020 PP 2NR C3 ZEN

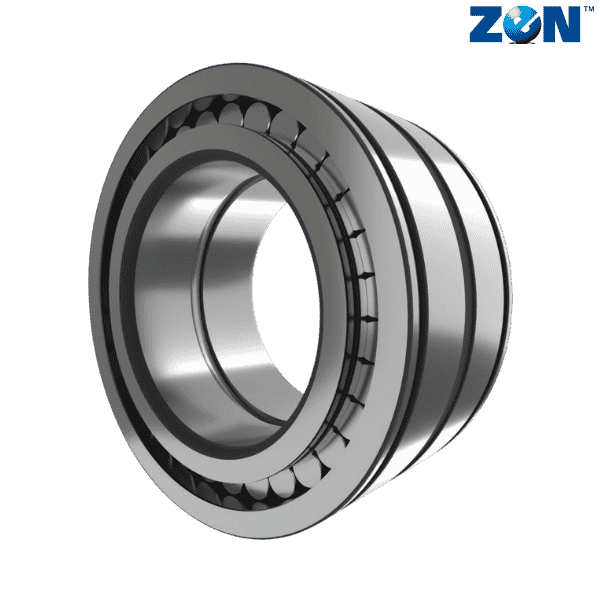

Category - Cylindrical Roller Bearings

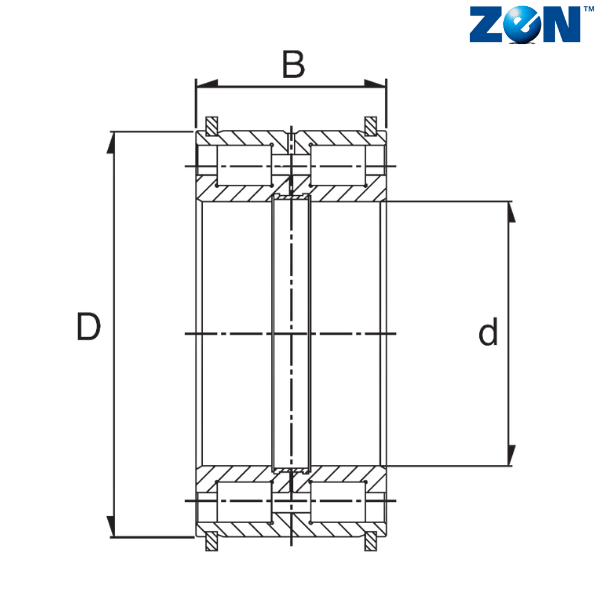

Inner Diameter (d) mm - 100
Outer Diameter (D) mm - 150
Width (B) mm - 67
Dynamic Load Rating (C) N - 330
Static Load Rating (C) N - 580
Limiting Speed (rpm) - 1000
Weight (kg) - 3.88
Alternative Designation - SL04 5020 PP C3 2NR
** Images are for representation purposes only
