Description
Brand - STEYR
Item Number - NM10 STEYR

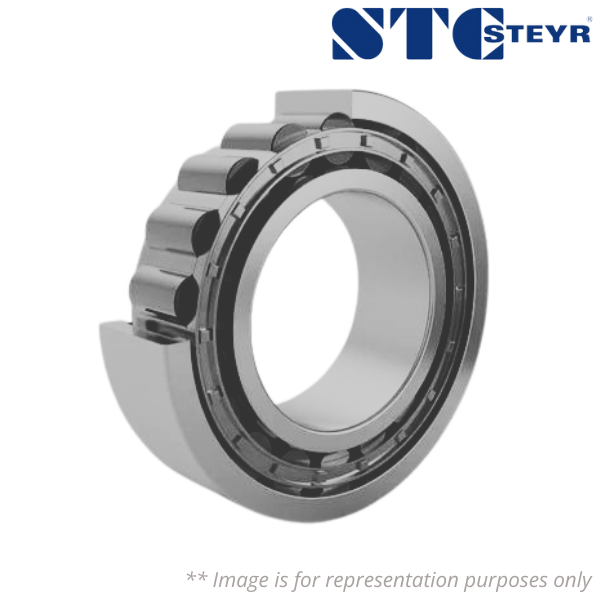

Category - Cylindrical Roller Bearing Single Row
Also known as - CRM10 MRJ1.1/4 RMS12
Inner (d) MM - 31.75
Outer (D) MM - 79.38
Width (B) MM - 22.23
Inner (d) Inch - 1.25
Outer (D) Inch - 3.125
Width (B) Inch - 0.875
Weight (kg) - 0.53
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - S - Steel or Standard Cage
External Modification - No External Modification
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
