Description
Brand - ZEN
Item Number - NKX70-Z ZEN
Category - NKX Needle Roller Axial Bearings
Fw (mm) - 70
D (mm) - 85
D1 (mm) - 95.2
D2 (mm) - 96.5
C (mm) - 40
C1 (mm) - 18
C2 (mm) - 11
dw (mm) - 70
r (mm) - 1
da (mm) - 90.5
ra (mm) - 1
Dynamic Radial Load Rating (N) - 47500
Static Radial Load Rating (N) - 87400
Dynamic Axial Load Rating (N) - 40850
Static Axial Load Rating (N) - 120650
Limiting Speed - 2320
Weight (kg) - 0.52
Radial Play - 0.012-0.036
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

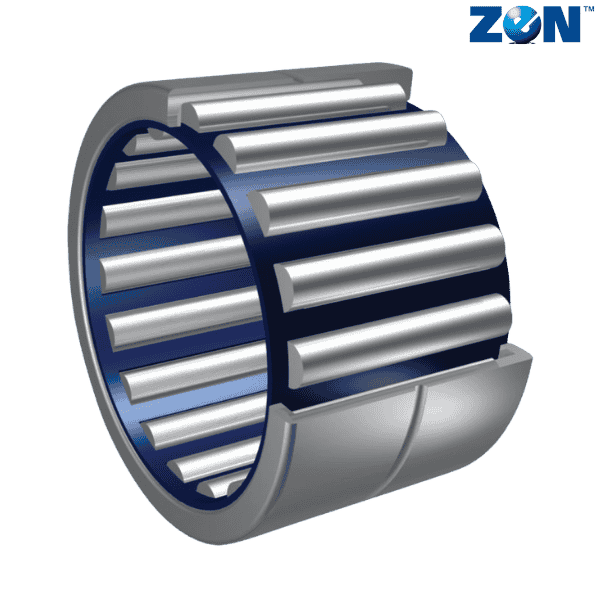

** Images are for representation purposes only
