Description
Brand - ZEN
Item Number - NKX45-Z ZEN
Category - NKX Needle Roller Axial Bearings
Fw (mm) - 45
D (mm) - 58
D1 (mm) - 65.2
D2 (mm) - 66.5
C (mm) - 32
C1 (mm) - 14
C2 (mm) - 9
dw (mm) - 45
r (mm) - 0.6
da (mm) - 60.5
ra (mm) - 0.6
Dynamic Radial Load Rating (N) - 29450
Static Radial Load Rating (N) - 50350
Dynamic Axial Load Rating (N) - 26600
Static Axial Load Rating (N) - 65550
Limiting Speed - 3500
Weight (kg) - 0.265
Radial Play - 0.008-0.028
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

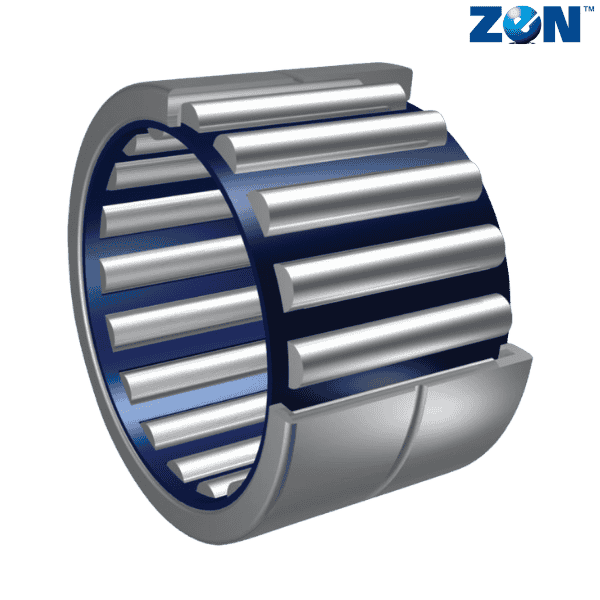

** Images are for representation purposes only
