Description
Brand - ZEN
Item Number - NKX40-Z ZEN
Category - NKX Needle Roller Axial Bearings
Fw (mm) - 40
D (mm) - 52
D1 (mm) - 60.1
D2 (mm) - 61.2
C (mm) - 32
C1 (mm) - 13
C2 (mm) - 10
dw (mm) - 40
r (mm) - 0.6
da (mm) - 55.7
ra (mm) - 0.6
Dynamic Radial Load Rating (N) - 28025
Static Radial Load Rating (N) - 44650
Dynamic Axial Load Rating (N) - 25650
Static Axial Load Rating (N) - 59850
Limiting Speed - 3900
Weight (kg) - 0.208
Radial Play - 0.008-0.028
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

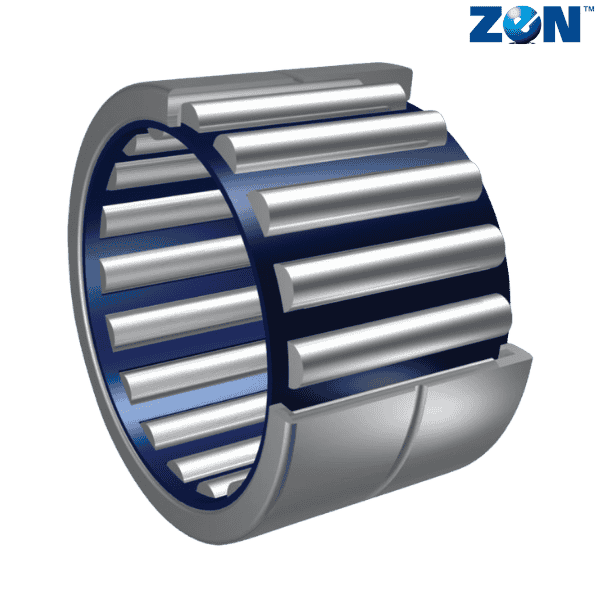

** Images are for representation purposes only
