Description
Brand - ZEN
Item Number - NKX35-Z ZEN
Category - NKX Needle Roller Axial Bearings
Fw (mm) - 35
D (mm) - 47
D1 (mm) - 52.1
D2 (mm) - 53.2
C (mm) - 30
C1 (mm) - 12
C2 (mm) - 9
dw (mm) - 35
r (mm) - 0.6
da (mm) - 47.7
ra (mm) - 0.6
Dynamic Radial Load Rating (N) - 26125
Static Radial Load Rating (N) - 39425
Dynamic Axial Load Rating (N) - 20140
Static Axial Load Rating (N) - 44650
Limiting Speed - 4400
Weight (kg) - 0.168
Radial Play - 0.006-0.023
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

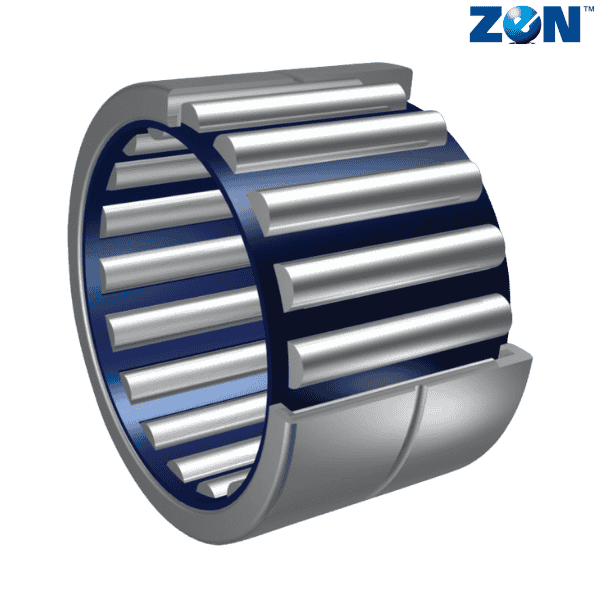

** Images are for representation purposes only
