Description
Brand - ZEN
Item Number - NKX30-Z ZEN
Category - NKX Needle Roller Axial Bearings
Fw (mm) - 30
D (mm) - 42
D1 (mm) - 47.1
D2 (mm) - 48.2
C (mm) - 30
C1 (mm) - 11
C2 (mm) - 9.9
dw (mm) - 30
r (mm) - 0.6
da (mm) - 42.7
ra (mm) - 0.6
Dynamic Radial Load Rating (N) - 24225
Static Radial Load Rating (N) - 3420
Dynamic Axial Load Rating (N) - 19380
Static Axial Load Rating (N) - 39900
Limiting Speed - 5000
Weight (kg) - 0.148
Radial Play - 0.006-0.023
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

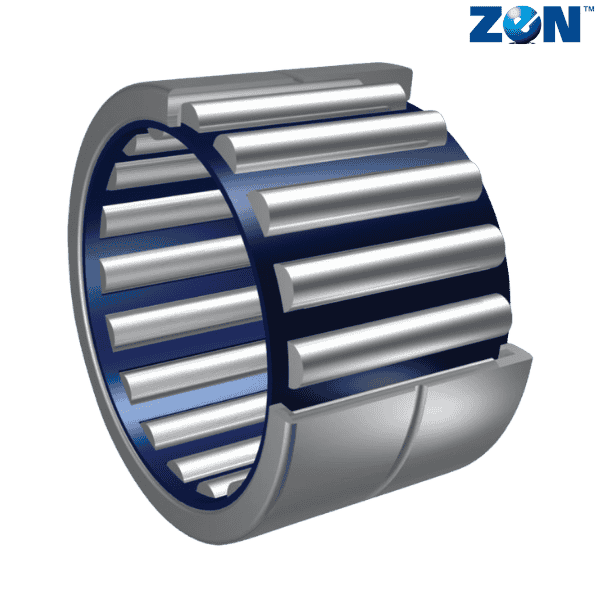

** Images are for representation purposes only
