Description
Brand - ZEN
Item Number - NKX25-Z ZEN
Category - NKX Needle Roller Axial Bearings
Fw (mm) - 25
D (mm) - 37
D1 (mm) - 42.1
D2 (mm) - 43.2
C (mm) - 30
C1 (mm) - 11
C2 (mm) - 9.5
dw (mm) - 25
r (mm) - 0.6
da (mm) - 37.7
ra (mm) - 0.6
Dynamic Radial Load Rating (N) - 20235
Static Radial Load Rating (N) - 28975
Dynamic Axial Load Rating (N) - 9120
Static Axial Load Rating (N) - 35625
Limiting Speed - 5800
Weight (kg) - 0.132
Radial Play - 0.006-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

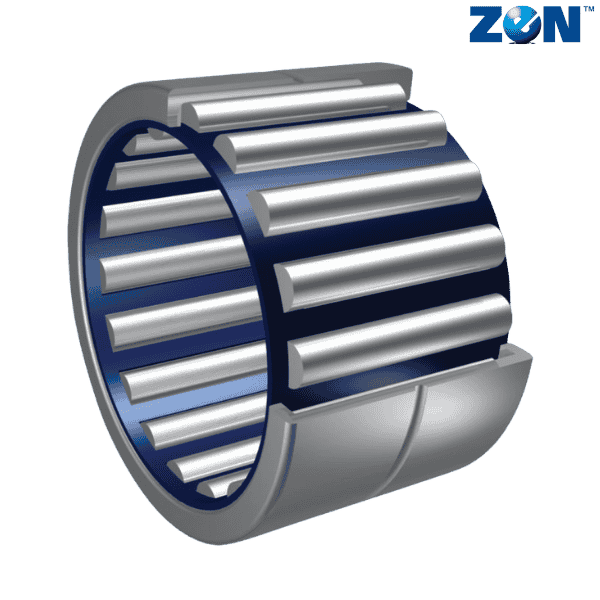

** Images are for representation purposes only
