Description
Brand - ZEN
Item Number - NKX20-Z ZEN
Category - NKX Needle Roller Axial Bearings
Fw (mm) - 20
D (mm) - 30
D1 (mm) - 35.1
D2 (mm) - 36.2
C (mm) - 30
C1 (mm) - 10
C2 (mm) - 10.5
dw (mm) - 20
r (mm) - 0.3
da (mm) - 30.7
ra (mm) - 0.3
Dynamic Radial Load Rating (N) - 17670
Static Radial Load Rating (N) - 22610
Dynamic Axial Load Rating (N) - 13585
Static Axial Load Rating (N) - 23465
Limiting Speed - 7200
Weight (kg) - 0.09
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

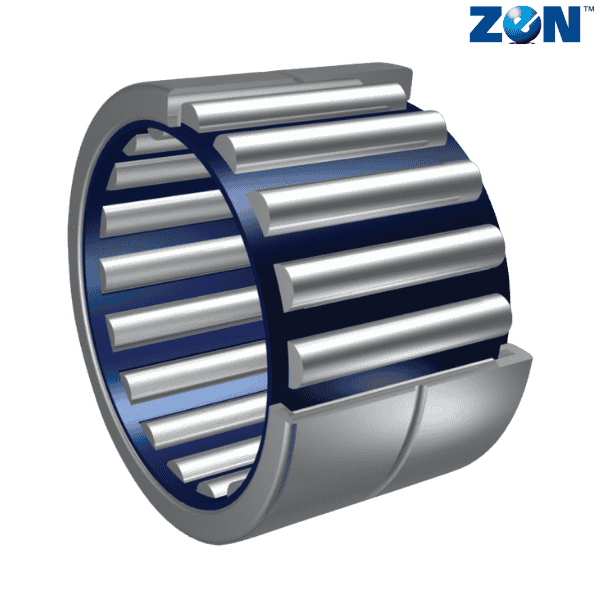

** Images are for representation purposes only
