Description
Brand - ZEN
Item Number - NKX17-Z ZEN
Category - NKX Needle Roller Axial Bearings
Fw (mm) - 17
D (mm) - 26
D1 (mm) - 30.1
D2 (mm) - 31.2
C (mm) - 25
C1 (mm) - 9
C2 (mm) - 8
dw (mm) - 17
r (mm) - 0.3
da (mm) - 25.7
ra (mm) - 0.3
Dynamic Radial Load Rating (N) - 12825
Static Radial Load Rating (N) - 14250
Dynamic Axial Load Rating (N) - 10260
Static Axial Load Rating (N) - 17290
Limiting Speed - 8400
Weight (kg) - 0.055
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

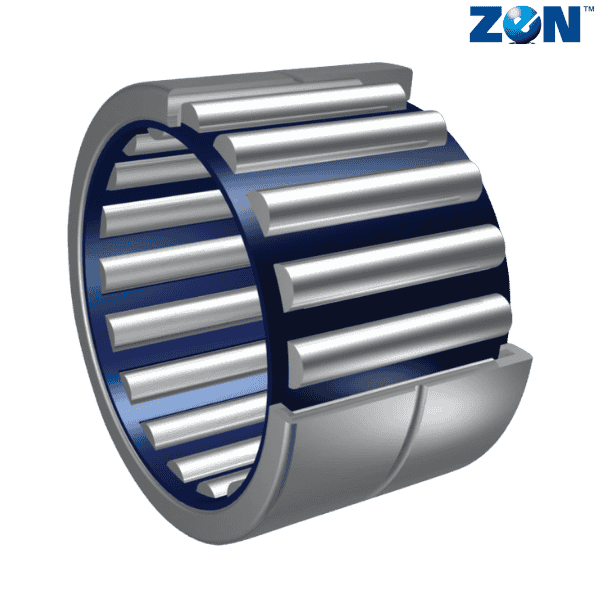

** Images are for representation purposes only
