Description
Brand - ZEN
Item Number - NKX15-Z ZEN
Category - NKX Needle Roller Axial Bearings
Fw (mm) - 15
D (mm) - 24
D1 (mm) - 28.1
D2 (mm) - 29.2
C (mm) - 23
C1 (mm) - 9
C2 (mm) - 6.5
dw (mm) - 15
r (mm) - 0.3
da (mm) - 23.7
ra (mm) - 0.3
Dynamic Radial Load Rating (N) - 11495
Static Radial Load Rating (N) - 12065
Dynamic Axial Load Rating (N) - 9975
Static Axial Load Rating (N) - 15960
Limiting Speed - 9200
Weight (kg) - 0.047
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

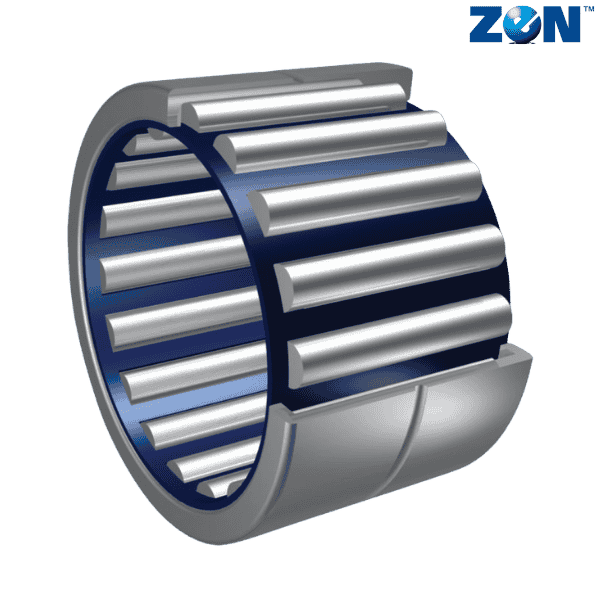

** Images are for representation purposes only
