Description
Brand - NADELLA
Item Number - NKJ7/16TN NADELLA
Category - Caged Needle Bearings with Inner Ring

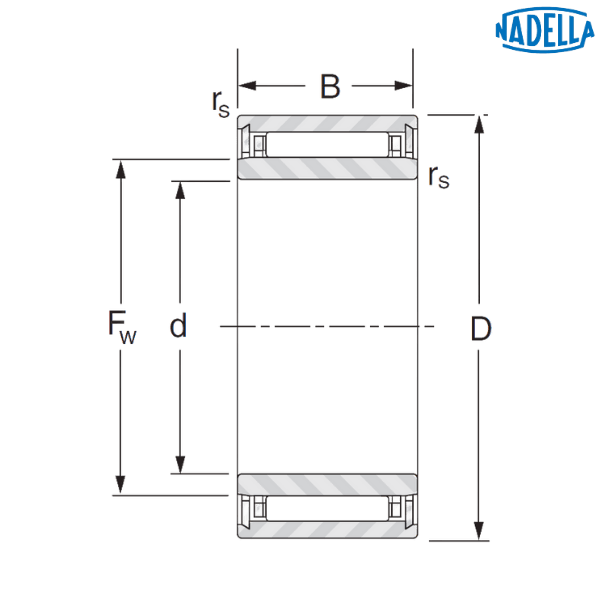

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 7 mm
Outer Diameter (D) - 17 mm
Width (B) - 16 mm
Shaft Diameter - 7 mm
Diameter of the Inner Raceway (Fw) - 11.5 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Axial Displacement (S) - 1.5 mm
Dynamic Load Rating (C) - 5.3 kN
Static Load Rating (C0) - 6.27 kN
Speed Rating with Oil - 39000 rpm
Speed Rating with Grease - 25000 rpm
Weight - 0.021 kg
Description of Prefix :
NKJ - Caged needle bearings with inner ring
♦ ♦ Images are for representation purposes only
Item Number - NKJ7/16TN NADELLA
Category - Caged Needle Bearings with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 7 mm
Outer Diameter (D) - 17 mm
Width (B) - 16 mm
Shaft Diameter - 7 mm
Diameter of the Inner Raceway (Fw) - 11.5 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Axial Displacement (S) - 1.5 mm
Dynamic Load Rating (C) - 5.3 kN
Static Load Rating (C0) - 6.27 kN
Speed Rating with Oil - 39000 rpm
Speed Rating with Grease - 25000 rpm
Weight - 0.021 kg
Description of Prefix :
NKJ - Caged needle bearings with inner ring
♦ ♦ Images are for representation purposes only
