Description
Brand - NADELLA
Item Number - NKJ5/12 NADELLA
Category - Caged Needle Bearings with Inner Ring

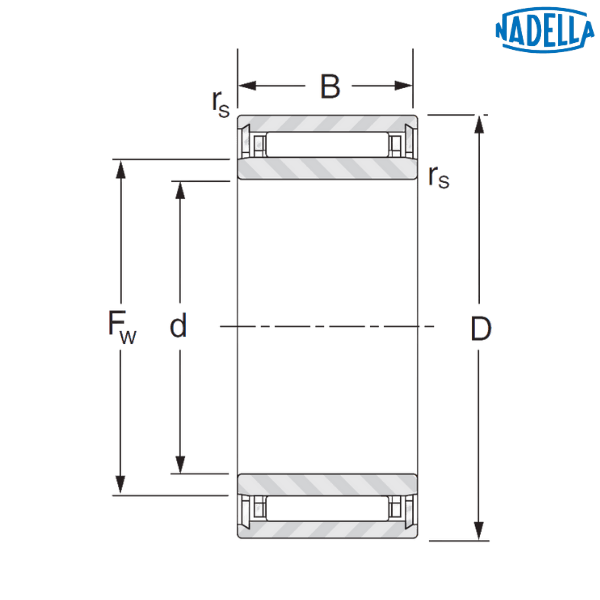

Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 5 mm
Outer Diameter (D) - 15 mm
Width (B) - 12 mm
Shaft Diameter - 5 mm
Diameter of the Inner Raceway (Fw) - 8 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Axial Displacement (S) - 1.5 mm
Dynamic Load Rating (C) - 4.57 kN
Static Load Rating (C0) - 4.89 kN
Speed Rating with Oil - 41000 rpm
Speed Rating with Grease - 26000 rpm
Weight - 0.014 kg
Description of Prefix :
NKJ - Caged needle bearings with inner ring
♦ ♦ Images are for representation purposes only
Item Number - NKJ5/12 NADELLA
Category - Caged Needle Bearings with Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 5 mm
Outer Diameter (D) - 15 mm
Width (B) - 12 mm
Shaft Diameter - 5 mm
Diameter of the Inner Raceway (Fw) - 8 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Axial Displacement (S) - 1.5 mm
Dynamic Load Rating (C) - 4.57 kN
Static Load Rating (C0) - 4.89 kN
Speed Rating with Oil - 41000 rpm
Speed Rating with Grease - 26000 rpm
Weight - 0.014 kg
Description of Prefix :
NKJ - Caged needle bearings with inner ring
♦ ♦ Images are for representation purposes only
