Description
Brand - NADELLA
Item Number - ΝΚ7/10ΤΝ NADELLA
Category - Needle Roller Bearing with Cage without Inner Ring

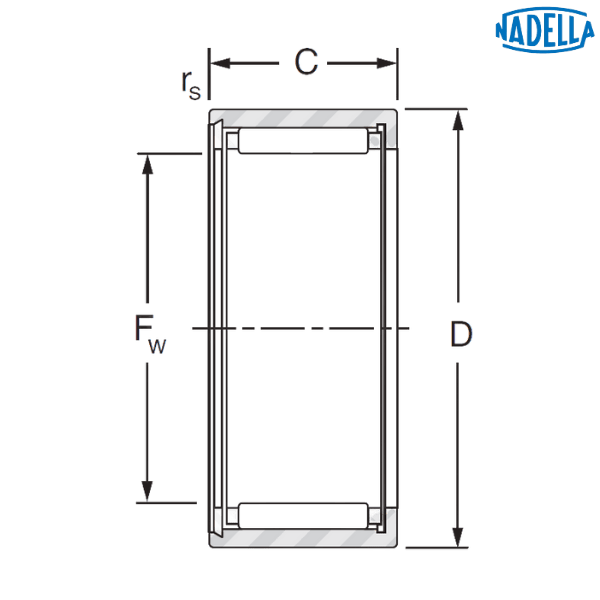

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 7 mm
Diameter of the Inner Raceway (Fw) - 7 mm
Outer Diameter (D) - 14 mm
Width (C) - 10 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Dynamic Load Rating (C) - 2.74 kN
Static Load Rating (C0) - 2.44 kN
Speed Rating with Oil - 42000 rpm
Speed Rating with Grease - 28000 rpm
Weight - 0.007 kg
Description of Suffixes and Prefixes :
NK - Caged needle bearings without inner ring
TN - Molded cage of reinforced enineered polymer
♦ ♦ Images are for representation purposes only
Item Number - ΝΚ7/10ΤΝ NADELLA
Category - Needle Roller Bearing with Cage without Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 7 mm
Diameter of the Inner Raceway (Fw) - 7 mm
Outer Diameter (D) - 14 mm
Width (C) - 10 mm
Minimum Chamfer Dimension (rs) - 0.3 mm
Dynamic Load Rating (C) - 2.74 kN
Static Load Rating (C0) - 2.44 kN
Speed Rating with Oil - 42000 rpm
Speed Rating with Grease - 28000 rpm
Weight - 0.007 kg
Description of Suffixes and Prefixes :
NK - Caged needle bearings without inner ring
TN - Molded cage of reinforced enineered polymer
♦ ♦ Images are for representation purposes only
