Description
Brand - NADELLA
Item Number - ΝΚ6/10 NADELLA
Category - Needle Roller Bearing with Cage without Inner Ring

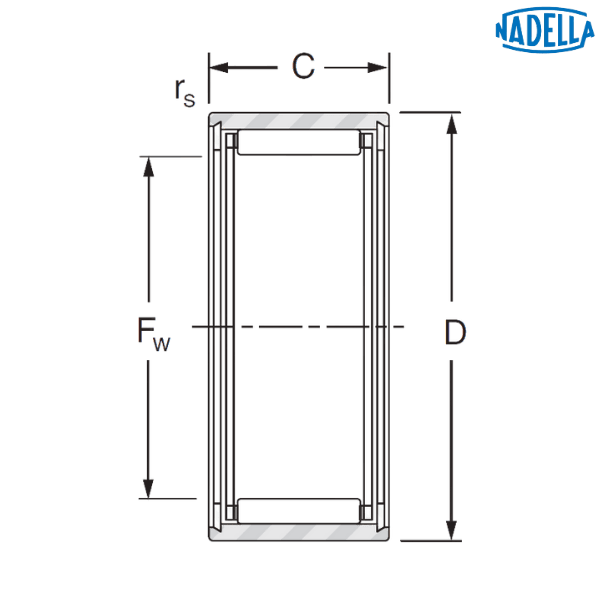

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 6 mm
Diameter of the Inner Raceway (Fw) - 6 mm
Outer Diameter (D) - 12 mm
Width (C) - 10 mm
Minimum Chamfer Dimension (rs) - 0.2 mm
Dynamic Load Rating (C) - 3.19 kN
Static Load Rating (C0) - 2.9 kN
Speed Rating with Oil - 44000 rpm
Speed Rating with Grease - 29000 rpm
Weight - 0.005 kg
Description of Prefix :
NK - Caged needle bearings without inner ring
♦ ♦ Images are for representation purposes only
Item Number - ΝΚ6/10 NADELLA
Category - Needle Roller Bearing with Cage without Inner Ring
Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 6 mm
Diameter of the Inner Raceway (Fw) - 6 mm
Outer Diameter (D) - 12 mm
Width (C) - 10 mm
Minimum Chamfer Dimension (rs) - 0.2 mm
Dynamic Load Rating (C) - 3.19 kN
Static Load Rating (C0) - 2.9 kN
Speed Rating with Oil - 44000 rpm
Speed Rating with Grease - 29000 rpm
Weight - 0.005 kg
Description of Prefix :
NK - Caged needle bearings without inner ring
♦ ♦ Images are for representation purposes only
