Description
Brand - ZEN
Item Number - NK5/10-B-TN ZEN
Category - NK Needle Roller Bearing
Inner Ring Dimension (d) mm - 5
Outer Ring Dimension (D) mm - 10
Width (B) mm - 10
rs (mm) - 0.15
Shaft Diameter (mm) - 5
Dynamic Load Rating (N) - 1728
Static Load Rating (N) - 2385
Limiting Speed (Grease) - 24
Limiting Speed (Oil) - 39
Weight (kg) - 3
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100

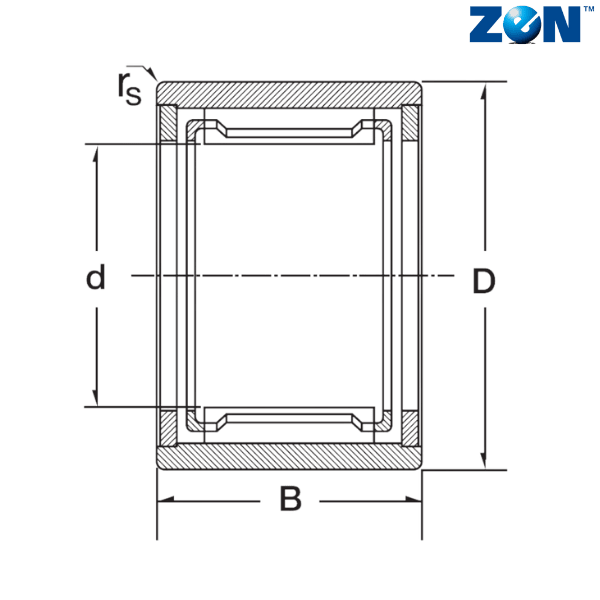

** Images are for representation purposes only
