Description
Brand - NADELLA
Item Number - ΝΚ5/Ι2ΤΝ NADELLA
Category - Needle Roller Bearing with Cage without Inner Ring

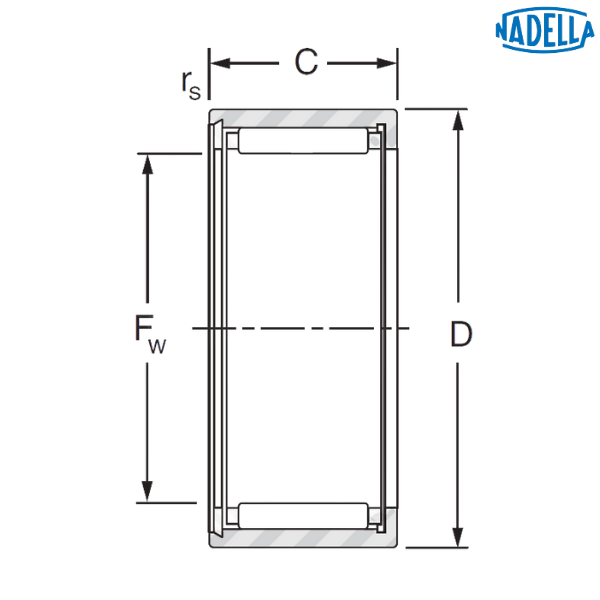

Principal Dimensions & Load Ratings (Metric) :
Shaft Diameter - 5 mm
Diameter of the Inner Raceway (Fw) - 5 mm
Outer Diameter (D) - 10 mm
Width (C) - 12 mm
Minimum Chamfer Dimension (rs) - 0.2 mm
Dynamic Load Rating (C) - 3.04 kN
Static Load Rating (C0) - 2.63 kN
Speed Rating with Oil - 47000 rpm
Speed Rating with Grease - 31000 rpm
Weight - 0.004 kg
Description of Suffixes and Prefixes :
NK - Caged needle bearings without inner ring
TN - Molded cage of reinforced enineered polymer
♦ ♦ Images are for representation purposes only
