Description
Brand - ZEN
Item Number - NK24/16 ZEN
Category - NK Needle Roller Bearing

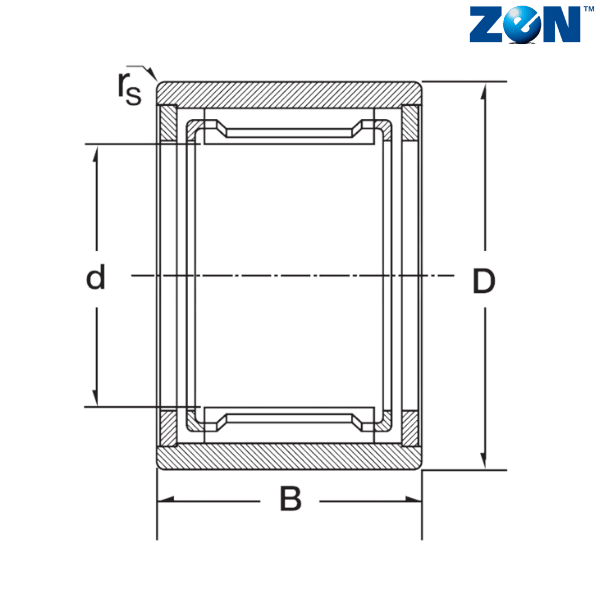

Inner Ring Dimension (d) mm - 24
Outer Ring Dimension (D) mm - 32
Width (B) mm - 16
rs (mm) - 0.3
Shaft Diameter (mm) - 24
Dynamic Load Rating (N) - 20070
Static Load Rating (N) - 15210
Limiting Speed (Grease) - 10
Limiting Speed (Oil) - 17
Weight (kg) - 32
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
