Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

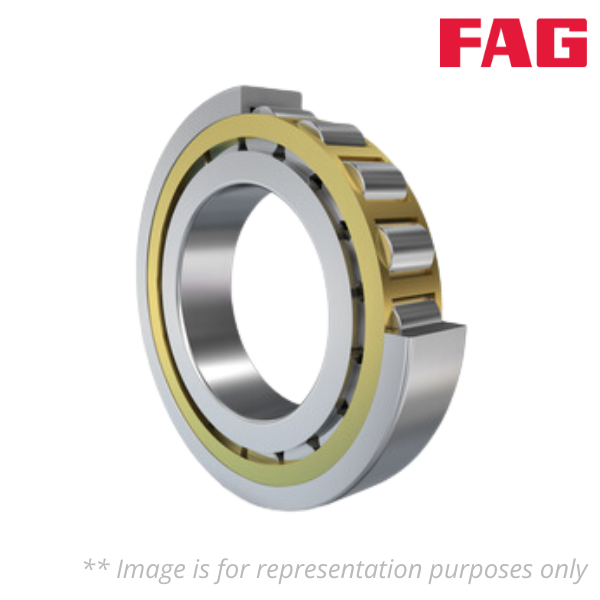

Brand - FAG
Item Number - NJ428-M1 FAG
Weight (Kg) - 48.2

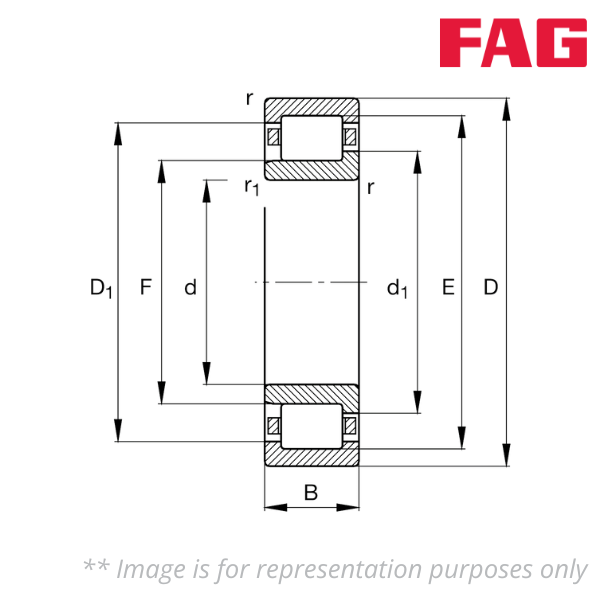

Inner Diameter (d) mm - 140
Outer Diameter (D) mm - 360
Inner Width (B) mm - 82
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 5
Axial Displacement (s) mm - 7.6
Raceway Diameter Inner Ring (F) mm - 198

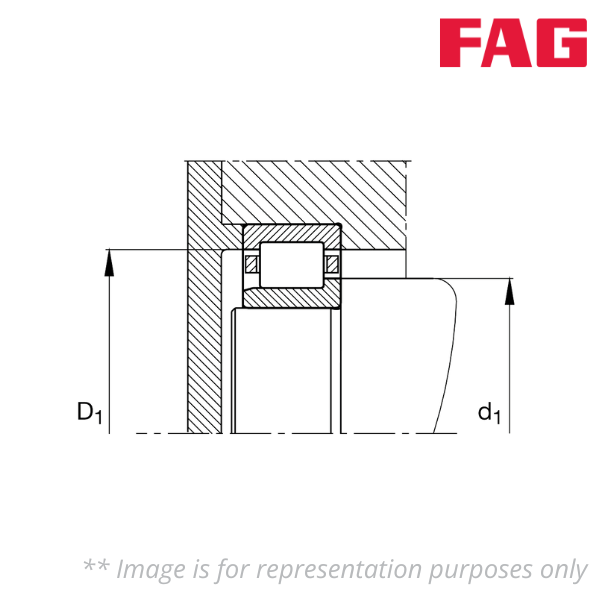

Shoulder Diameter Outer Ring (D1) mm - 282.9
Shoulder Diameter Inner Ring (d1) mm - 218.2
Minimum Diameter of Shaft Shoulder (da) mm - 164
Maximum Diameter of Shaft Shoulder (da) mm - 195
Maximum Diameter of Housing Shoulder (Da) mm - 336
Maximum Fillet Radius of Shaft (ra) mm - 4
Maximum Fillet Radius of Housing (ra1) mm - 4
Basic Dynamic Load Rating (Cr) kN - 930
Basic Static Load Rating (C0r) kN - 1120
Fatigue Limit Load (Cur) kN - 123
Limiting Speed (nG) rpm - 3000
Reference Speed (nB) rpm - 1800
