Description
Brand - INA
Item Number - NJ2324-E-XL-MCA-QP51-C4 INA
Also known as - NJ2324-E-MCA-QP51-C4
Inner (d) MM - 120
Outer (D) MM - 260
Width (B) MM - 86
Inner (d) Inch - 4.7244
Outer (D) Inch - 10.2362
Width (B) Inch - 3.3858
Weight (kg) - 23.8
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - MA - Brass Cage, Centered on Outer Ring
External Modification - No External Modification
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - QP - Vibrating Screen Specification
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C

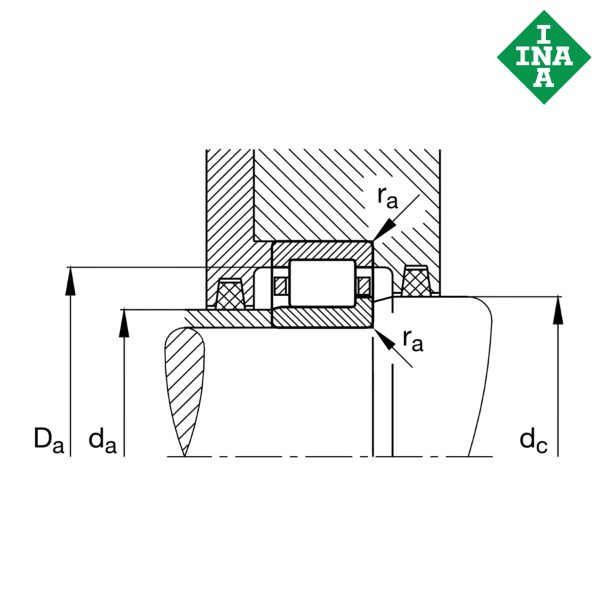

** Images are for representation purposes only
