Description

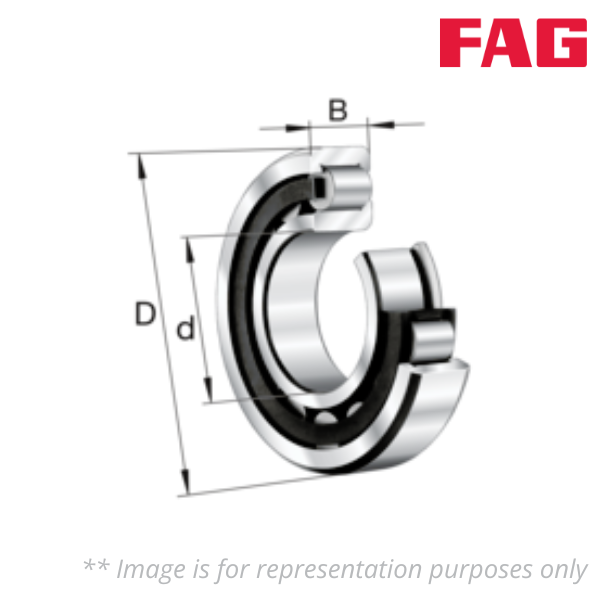

Brand - FAG
Item Number - NJ18/950-M1 FAG
Weight (Kg) - 192

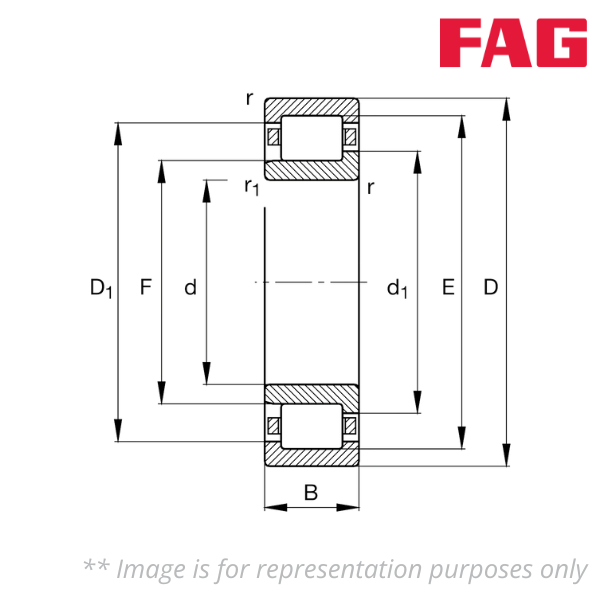

Inner Diameter (d) mm - 950
Outer Diameter (D) mm - 1150
Inner Width (B) mm - 90
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 5
Raceway Diameter Outer Ring (E) mm - 1004
Shoulder Diameter Outer Ring (D1) mm - 1088
Shoulder Diameter Inner Ring (d1) mm - 1020

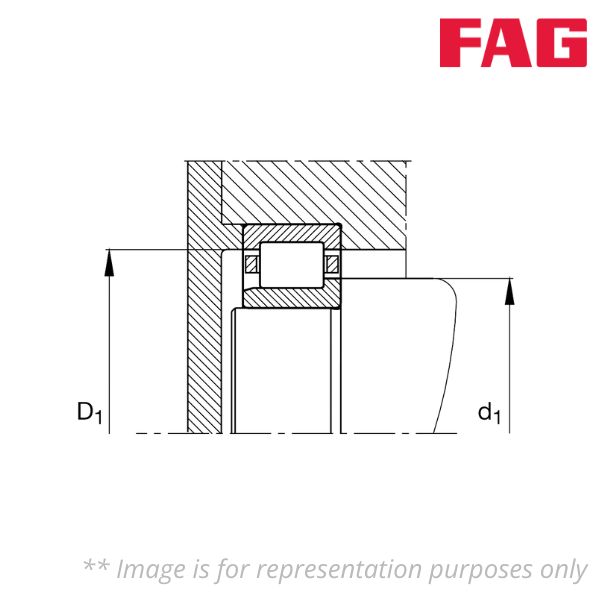

Minimum Diameter of Shaft Shoulder (da) mm - 967
Maximum Diameter of Shaft Shoulder (da) mm - 999
Maximum Diameter of Housing Shoulder (Da) mm - 1133
Maximum Fillet Radius of Shaft (ra) mm - 4
Maximum Fillet Radius of Housing (ra1) mm - 4
Basic Dynamic Load Rating (Cr) kN - 2200
Basic Static Load Rating (C0r) kN - 5500
Fatigue Limit Load (Cur) kN - 405
Limiting Speed (nG) rpm - 900
