Description
Brand - SKF
Item Number - NJ 2314 ECML/C3H SKF
Category - Gearbox, Cylindrical roller bearings
Bore Diameter (d) mm - 70
Outer Diameter (D) mm - 150
Width (B) mm - 51
Dynamic Load Rating (C) kN - 315
Static Load Rating (C0) kN - 325
Limiting Speed (r/min) - 8500
Weight (kg) - 4.5
Designation Prefixes and Suffixes:
N - Snap Ring Groove in the Outer Ring
J - Pressed Window-Type Steel Cage
EC - Optimized Internal Design Incorporating More and/or Larger Rollers and with Modified Roller End/Flange Contact
ML - Machined One-Piece Window-Type Brass Cage, Outer Ring Centred, used for Oil Lubrication

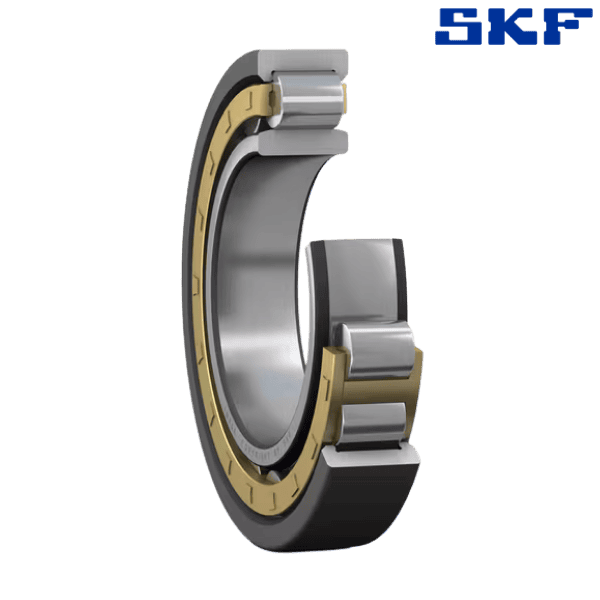

** Images are for representation purposes only
