Description
Brand - KAYDON
Item Number - NG400XP0 KAYDON
Also Known As - KDN.NG400XP0
Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

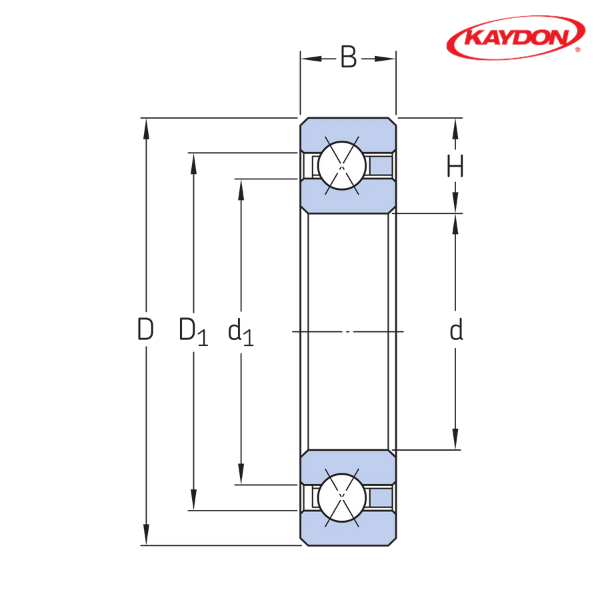

Inner Diameter (d) mm - 1015.995
Outer Diameter (D) mm - 1066.808
Radial Cross Section (H) mm - 25.4
Width (B) mm - 25.4
Dynamic Load Rating, Radial Direction (CK) kN - 108
Basic Static Load Rating, Radial Direction (C0) kN - 299
Basic Static Load Rating, Axial Direction (C0a) kN - 749
Basic Dynamic Load Rating, Moment (CM) kN·m - 42.285
Basic Static Load Rating, Moment (C0M) kN·m - 155.919
Weight (kg) - 14

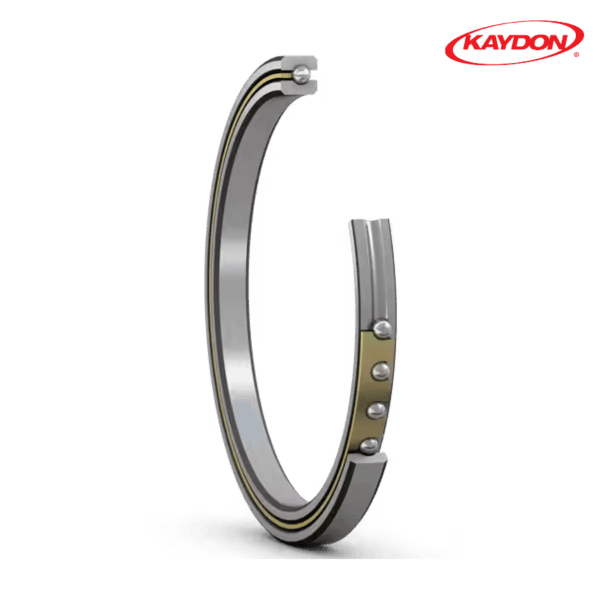

** Images are for representation purposes only
