Description
Brand - KAYDON
Item Number - NG220XP0 KAYDON
Also Known As - KDN.NG220XP0

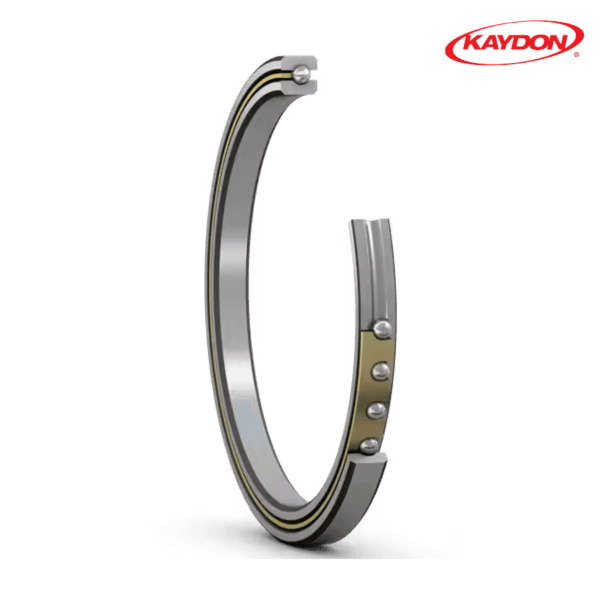

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

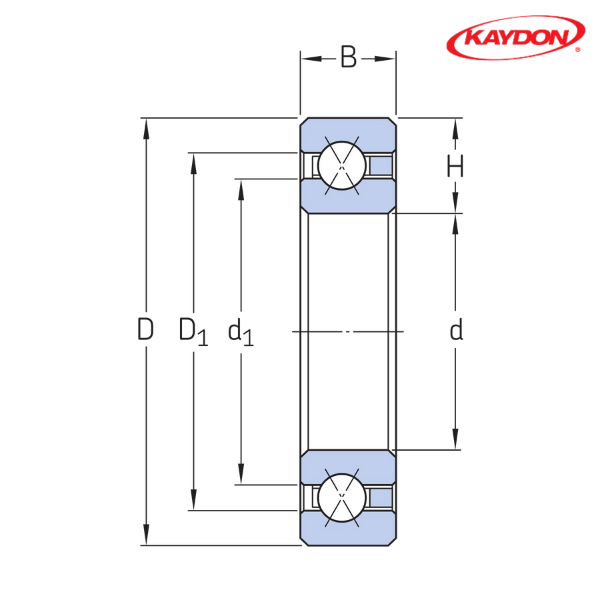

Inner Diameter (d) mm - 558.795
Outer Diameter (D) mm - 609.608
Radial Cross Section (H) mm - 25.4
Width (B) mm - 25.4
Dynamic Load Rating, Radial Direction (CK) kN - 80.7
Basic Static Load Rating, Radial Direction (C0) kN - 168
Basic Static Load Rating, Axial Direction (C0a) kN - 420
Basic Dynamic Load Rating, Moment (CM) kN·m - 17.696
Basic Static Load Rating, Moment (C0M) kN·m - 49.058
Weight (kg) - 7.85
** Images are for representation purposes only
