NG070XP0 RBC

Brand - RBC
Item Number - NG070XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Bearing

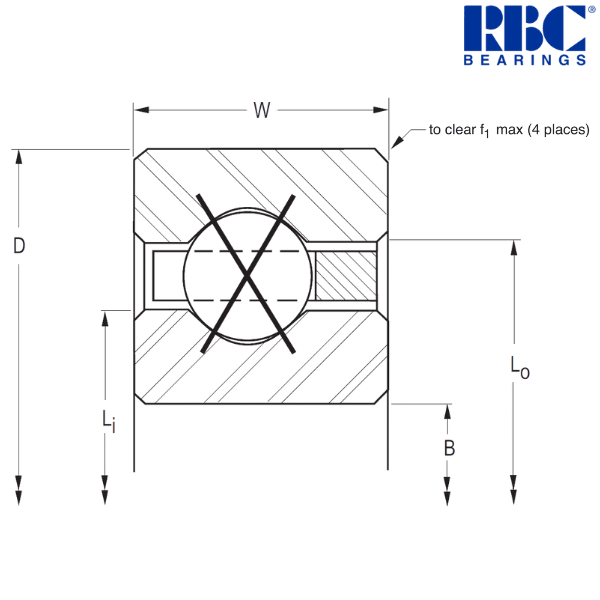

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 6.9998 inch
Outside Diameter (D) - 9.0003 inch
Width (W) - 1 inch
Land Diameter of Inner Ring (Li) - 7.75 inch
Land Diameter of Outer Ring (Lo) - 8.25 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.5 inch
Ball Quantity - 24 pcs.
Approximate Weight - 5.8 lbs
Radial Static Load - 13130 lbf
Radial Dynamic Load - 10208 lbf
Thrust Static Load - 32830 lbf
Thrust Dynamic Load - 19330 lbf
Moment Static Load - 52530 lbf
Moment Dynamic Load - 30930 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 177.795 mm
Outside Diameter (D) - 228.608 mm
Width (W) - 25.4 mm
Land Diameter of Inner Ring (Li) - 196.85 mm
Land Diameter of Outer Ring (Lo) - 209.55 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 2.631 kg
Radial Static Load - 58410 N
Radial Dynamic Load - 45410 N
Thrust Static Load - 146040 N
Thrust Dynamic Load - 85980 N
Moment Static Load - 5940 Nm
Moment Dynamic Load - 3490 Nm

Description of Suffixes and Prefixes :
N - No seals or shields
G - Standard Width
X - 4-Point Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel with Thin Dense Chrome Coating
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
