NF090XP0 RBC

Brand - RBC
Item Number - NF090XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Bearing

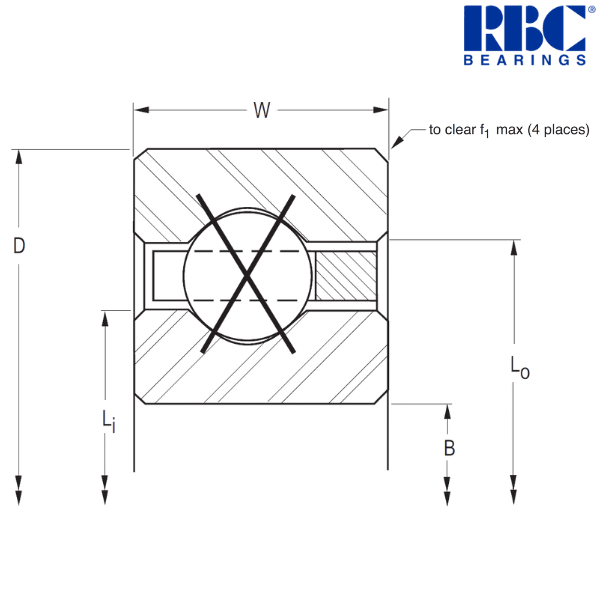

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 8.9998 inch
Outside Diameter (D) - 10.5003 inch
Width (W) - 0.75 inch
Land Diameter of Inner Ring (Li) - 9.563 inch
Land Diameter of Outer Ring (Lo) - 9.938 inch
Housing Fillet (f1) - 0.08 inch
Ball Diameter - 0.375 inch
Ball Quantity - 39 pcs.
Approximate Weight - 3.9 lbs
Radial Static Load - 11000 lbf
Radial Dynamic Load - 6947 lbf
Thrust Static Load - 27510 lbf
Thrust Dynamic Load - 11630 lbf
Moment Static Load - 53640 lbf
Moment Dynamic Load - 25410 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 228.595 mm
Outside Diameter (D) - 266.708 mm
Width (W) - 19.05 mm
Land Diameter of Inner Ring (Li) - 242.9 mm
Land Diameter of Outer Ring (Lo) - 252.43 mm
Housing Fillet (f1) - 2.03 mm
Approximate Weight - 1.769 kg
Radial Static Load - 48930 N
Radial Dynamic Load - 30900 N
Thrust Static Load - 122370 N
Thrust Dynamic Load - 51730 N
Moment Static Load - 6060 Nm
Moment Dynamic Load - 2870 Nm

Description of Suffixes and Prefixes :
N - No seals or shields
F - Standard Width
X - 4-Point Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel with Thin Dense Chrome Coating
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.

♦ ♦ Images are for representation purposes only
