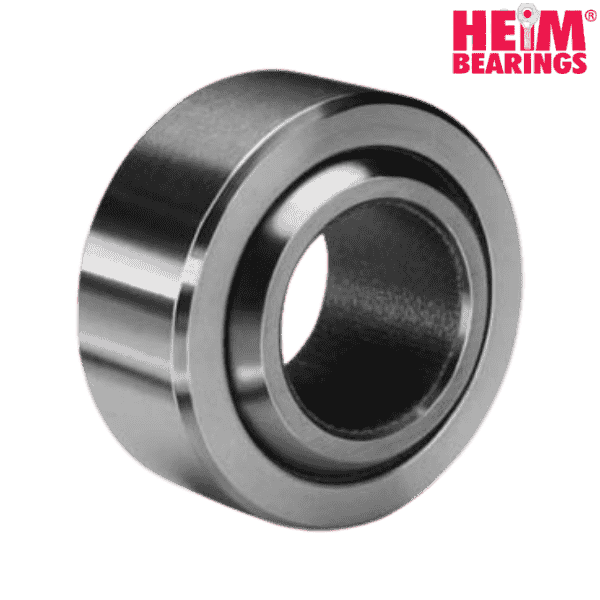

NEE8 RBC HEIM

Brand - RBC HEIM
Item Number - NEE8 RBC HEIM
Category - Plain Spherical Bearing (Military Series)
M81820/4 Dash No. - 8

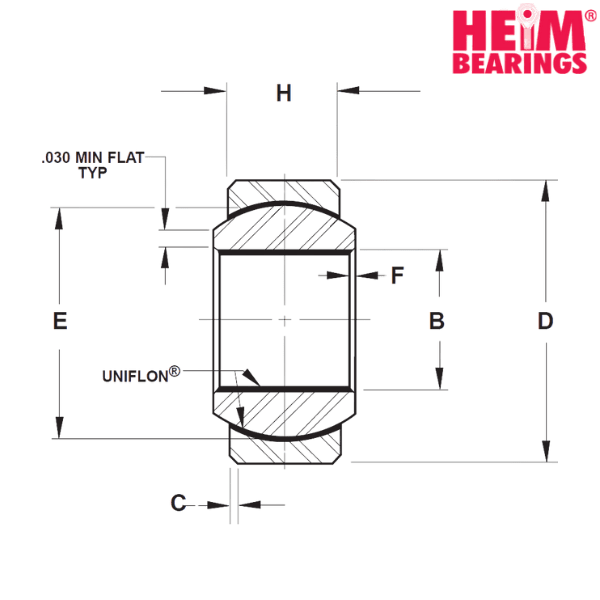

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 0.501 (+.0000 to - .0010) inch
Outside Diameter (D) - 1 (+.0000 to - .0005) inch
Ball Width (W) - 0.5 (+.000 to - .002) inch
Housing Width (H) - 0.39 (+.005 to - .005) inch
Ball Diameter (E) - 0.781 inch
Other Dimension (G) - 0.876 (+.000 to - .008) inch
Other Dimension (S) - 0.035 inch
Other Dimension (F) - 0.025 inch
Other Dimension (N) - 0.055 (+.000 to - .010) inch
Other Dimension (C) - 0.025 (+.005 to - .005) inch
Q - 8°
Static Radial Load - 17250 lbf
Static Axial Load - 2100 lbf
Oscillating Load - 8250 lbf
No Load Rotational Breakaway Torque - 1-15 in-lbs
Approximate Weight - 0.07 lbs

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.0317 kg

Other salient points to be noted :
• Outer Member = 17-4PH Stainless steel heat treated.
• Ball = PH13-8MO Stainless steel heat treated.
• Liner = Self-lubricating “E” UNIFLON ® per SAE-AS81820 (formerly MIL-B-81820).

♦ ♦ Images are for representation purposes only
