Description
Brand - KAYDON
Item Number - ND160XP0 KAYDON
Also Known As - KDN.ND160XP0

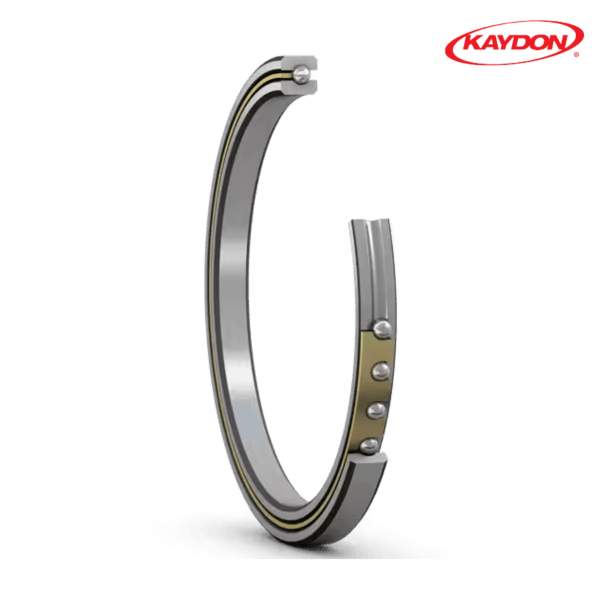

Category - Reali-Slim Thin Section Four Point Contact Ball Bearing

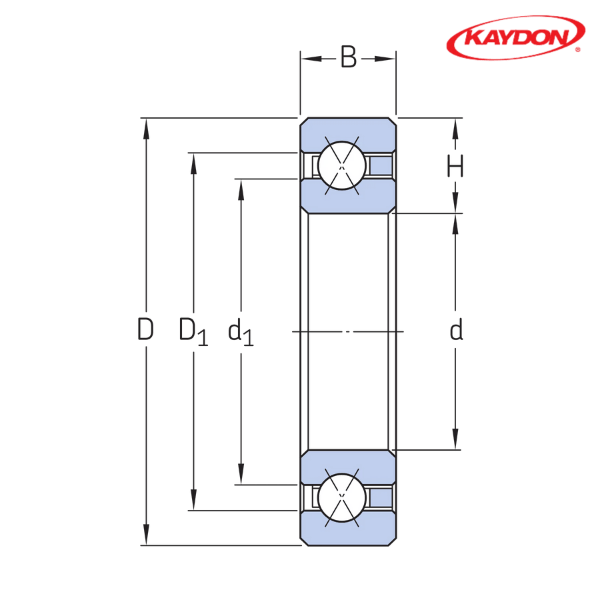

Inner Diameter (d) mm - 406.395
Outer Diameter (D) mm - 431.808
Radial Cross Section (H) mm - 12.7
Width (B) mm - 12.7
Dynamic Load Rating, Radial Direction (CK) kN - 21.8
Basic Static Load Rating, Radial Direction (C0) kN - 50.2
Basic Static Load Rating, Axial Direction (C0a) kN - 126
Basic Dynamic Load Rating, Moment (CM) kN·m - 3.426
Basic Static Load Rating, Moment (C0M) kN·m - 10.52
Weight (kg) - 1.41
** Images are for representation purposes only
