NB090XP0 RBC

Brand - RBC
Item Number - NB090XP0*RBC
Category - 4-Point Contact, X-Type Thin Section Bearing

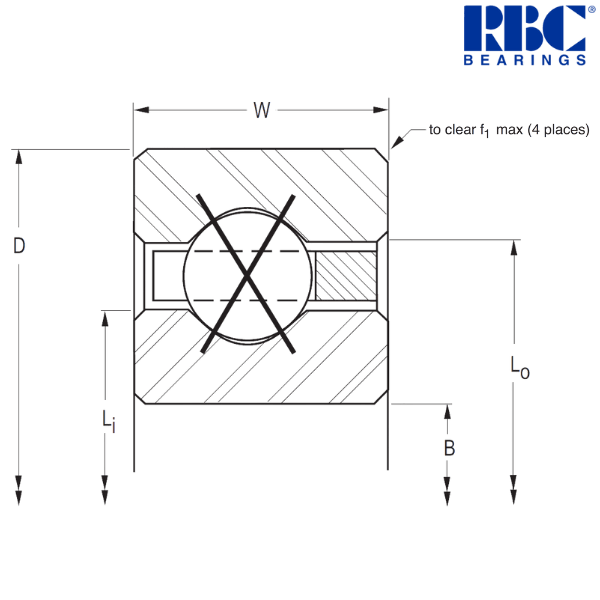

Principal Dimensions & Load Ratings (Imperial) :
Bore Diameter (B) - 8.9998 inch
Outside Diameter (D) - 9.6253 inch
Width (W) - 0.3125 inch
Land Diameter of Inner Ring (Li) - 9.234 inch
Land Diameter of Outer Ring (Lo) - 9.391 inch
Housing Fillet (f1) - 0.032 inch
Ball Diameter - 0.15625 inch
Ball Quantity - 93 pcs.
Approximate Weight - 0.66 lbs
Radial Static Load - 3780 lbf
Radial Dynamic Load - 1732 lbf
Thrust Static Load - 9450 lbf
Thrust Dynamic Load - 2890 lbf
Moment Static Load - 17600 lbf
Moment Dynamic Load - 6050 lbf

Principal Dimensions & Load Ratings (Metric) :
Bore Diameter (B) - 228.595 mm
Outside Diameter (D) - 244.483 mm
Width (W) - 7.938 mm
Land Diameter of Inner Ring (Li) - 234.54 mm
Land Diameter of Outer Ring (Lo) - 238.53 mm
Housing Fillet (f1) - 0.81 mm
Approximate Weight - 0.299 kg
Radial Static Load - 16810 N
Radial Dynamic Load - 7700 N
Thrust Static Load - 42040 N
Thrust Dynamic Load - 12860 N
Moment Static Load - 1990 Nm
Moment Dynamic Load - 680 Nm

Description of Suffixes and Prefixes :
N - No seals or shields
B - Standard Width
X - 4-Point Ball Contact
R - Brass or (Composite)
0 - ABEC 1F

Other salient points about this Bearing :
• 52100 Steel with Thin Dense Chrome Coating
• Large Diameter
• Light Weight
• Small Cross Section
• Snap-Over Ball Separator

* The alphanumeric identification system is used under license.
