Description
Brand - IKO
Item Number - NAXI 3532 IKO
Also Known As - NAXI3532
Category - Needle Roller Bearings with Thrust Ball Bearing with Inner Ring
Shaft Diameter (mm) - 35
Bore Diameter (d) mm - 35
Outer Diameter (D) mm - 52
Boundary Dimension (D1) mm - 60
Boundary Dimension (D2) mm - 61
Boundary Dimension (L) mm - 32
Boundary Dimension (B) mm - 20
Boundary Dimension (H) mm - 13
Boundary Dimension (l1) mm - 10
Minimum Boundary Dimension (rs) mm - 0.6
Minimum Boundary Dimension (rs1) mm - 0.3
Boundary Dimension (Fw) mm - 40
Boundary Dimension (di) mm - 40

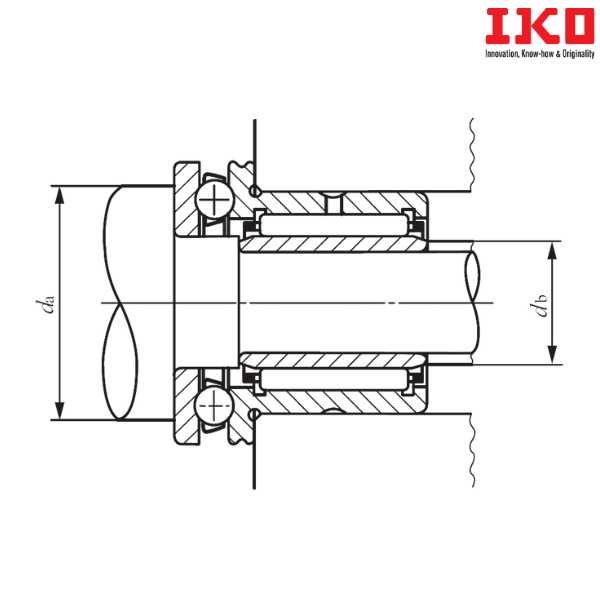

Minimum Standard Mounting Dimension (da) mm - 52
Standard Mounting Dimension (db) mm - 39
Basic Radial dynamic load rating (C) N - 29400
Basic Axial dynamic load rating (C) N - 26900
Basic Radial Static load rating (C0) N - 54100
Basic Axial Static load rating (C0) N - 50000
Allowable Rotational Speed (min-1) - 5500
Assembled Inner Ring - LRT 354020
Weight (kg) - 0.265
Needle Roller Bearing with Dust Cover - NAXI 3532Z
** Images are for representation purposes only
