Description
Brand - IKO
Item Number - NAXI 3030Z IKO
Also Known As - NAXI3030Z
Category - Needle Roller Bearings with Thrust Ball Bearing with Inner Ring
Shaft Diameter (mm) - 30
Bore Diameter (d) mm - 30
Outer Diameter (D) mm - 47
Boundary Dimension (D1) mm - 52
Boundary Dimension (D2) mm - 53
Boundary Dimension (L) mm - 30
Boundary Dimension (B) mm - 20
Boundary Dimension (H) mm - 12
Boundary Dimension (l1) mm - 9
Minimum Boundary Dimension (rs) mm - 0.6
Minimum Boundary Dimension (rs1) mm - 0.3
Boundary Dimension (Fw) mm - 35
Boundary Dimension (di) mm - 35

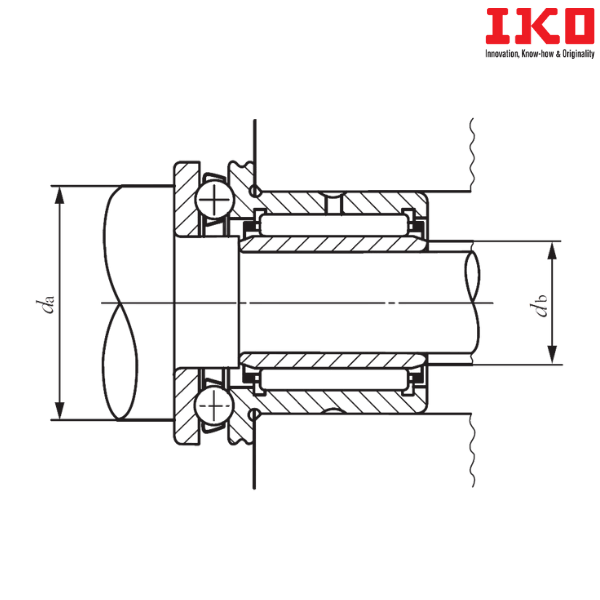

Minimum Standard Mounting Dimension (da) mm - 45
Standard Mounting Dimension (db) mm - 34
Basic Radial dynamic load rating (C) N - 26900
Basic Axial dynamic load rating (C) N - 21200
Basic Radial Static load rating (C0) N - 46200
Basic Axial Static load rating (C0) N - 37600
Allowable Rotational Speed (min-1) - 6000
Assembled Inner Ring - LRT 303520
Weight (kg) - 0.215
Needle Roller Bearing without Dust Cover - NAXI 3030
** Images are for representation purposes only
