NAX 7040 IKO


Country Of Origin: JAPAN
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - IKO
Item Number - NAX 7040 IKO
Also Known As - NAX7040
Category - Needle Roller Bearings with Thrust Ball Bearing without Inner Ring
Shaft Diameter (mm) - 70
Boundary Dimension (Fw) mm - 70
Boundary Dimension (D) mm - 85
Boundary Dimension (D1) mm - 95
Boundary Dimension (D2) mm - 96.5
Boundary Dimension (L) mm - 40
Boundary Dimension (H) mm - 18
Boundary Dimension (l1) mm - 11
Minimum Boundary Dimension (rs) mm - 1
Boundary Dimension (di) mm - 70
Minimum Standard Mounting Dimension (da) mm - 85
Basic Radial dynamic load rating (C) N - 55500
Basic Axial dynamic load rating (C) N - 43100
Basic Radial Static load rating (C0) N - 120000
Basic Axial Static load rating (C0) N - 101000
Allowable Rotational Speed (min-1) - 3500
Weight (kg) - 0.555
Needle Roller Bearing with Dust Cover - NAX 7040Z

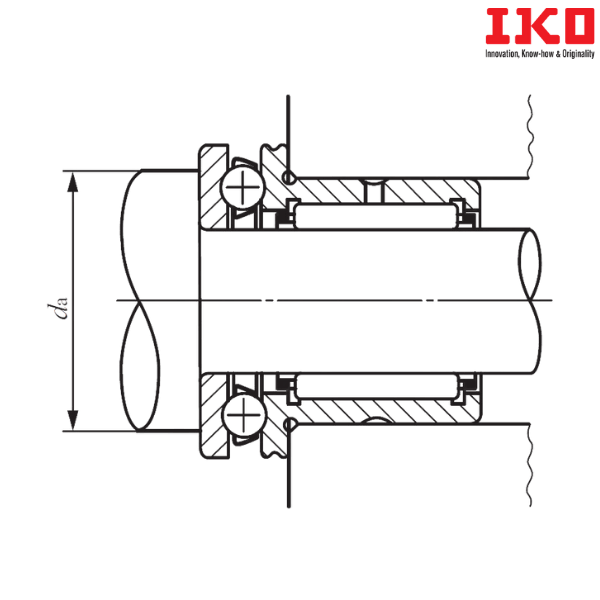

** Images are for representation purposes only
