Description
Brand - IKO
Item Number - NAX 1223Z IKO
Also Known As - NAX1223Z
Category - Needle Roller Bearings with Thrust Ball Bearing without Inner Ring
Shaft Diameter (mm) - 12
Boundary Dimension (Fw) mm - 12
Boundary Dimension (D) mm - 21
Boundary Dimension (D1) mm - 26
Boundary Dimension (D2) mm - 27
Boundary Dimension (L) mm - 23
Boundary Dimension (H) mm - 9
Boundary Dimension (l1) mm - 6.5
Minimum Boundary Dimension (rs) mm - 0.3
Boundary Dimension (di) mm - 12
Minimum Standard Mounting Dimension (da) mm - 20
Basic Radial dynamic load rating (C) N - 9250
Basic Axial dynamic load rating (C) N - 9670
Basic Radial Static load rating (C0) N - 11200
Basic Axial Static load rating (C0) N - 11100
Allowable Rotational Speed (min-1) - 9000
Weight (kg) - 0.0455
Needle Roller Bearing without Dust Cover - NAX 1223

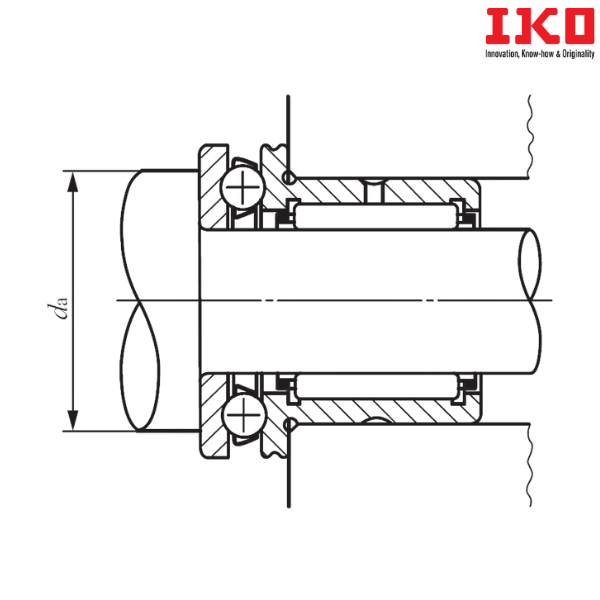

** Images are for representation purposes only
