Description
Brand - ZEN
Item Number - NATV8-PPX ZEN

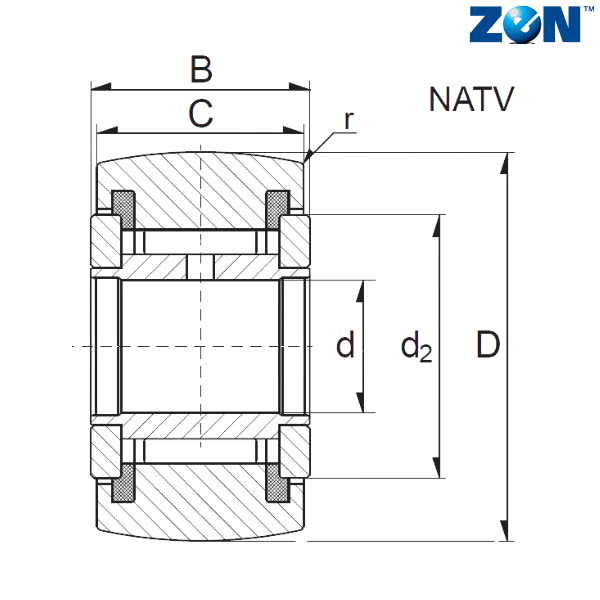

Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 8
Outer Diameter (D) mm - 24
Width (B) mm - 15
C (mm) - 14
d2 (mm) - 19
r (mm) - 0.3
Weight (kg) - 0.041
Dynamic Load Rating (N) - 7800
Static Load Rating (N) - 11400
Limiting Speed - 2500
Fatigue Limit Load - 1430
Radial Play - 0.005-0.020
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
