Description
Brand - ZEN
Item Number - NATV6-PP ZEN

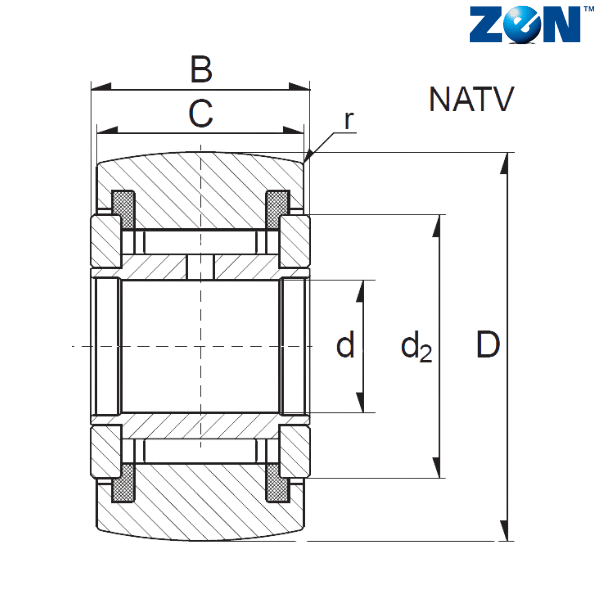

Category - Yoke Type Track Rollers (NATR and NATV)
Inner Diameter (d) mm - 6
Outer Diameter (D) mm - 19
Width (B) mm - 12
C (mm) - 11
d2 (mm) - 15
r (mm) - 0.15
Weight (kg) - 0.021
Dynamic Load Rating (N) - 5400
Static Load Rating (N) - 7900
Limiting Speed - 3100
Fatigue Limit Load - 1040
Radial Play - 0.005-0.020
Outer Ring Material - AISI51200
Inner Ring Material - AISI51200
Ball Material - AISI51200
** Images are for representation purposes only
